Features & Details

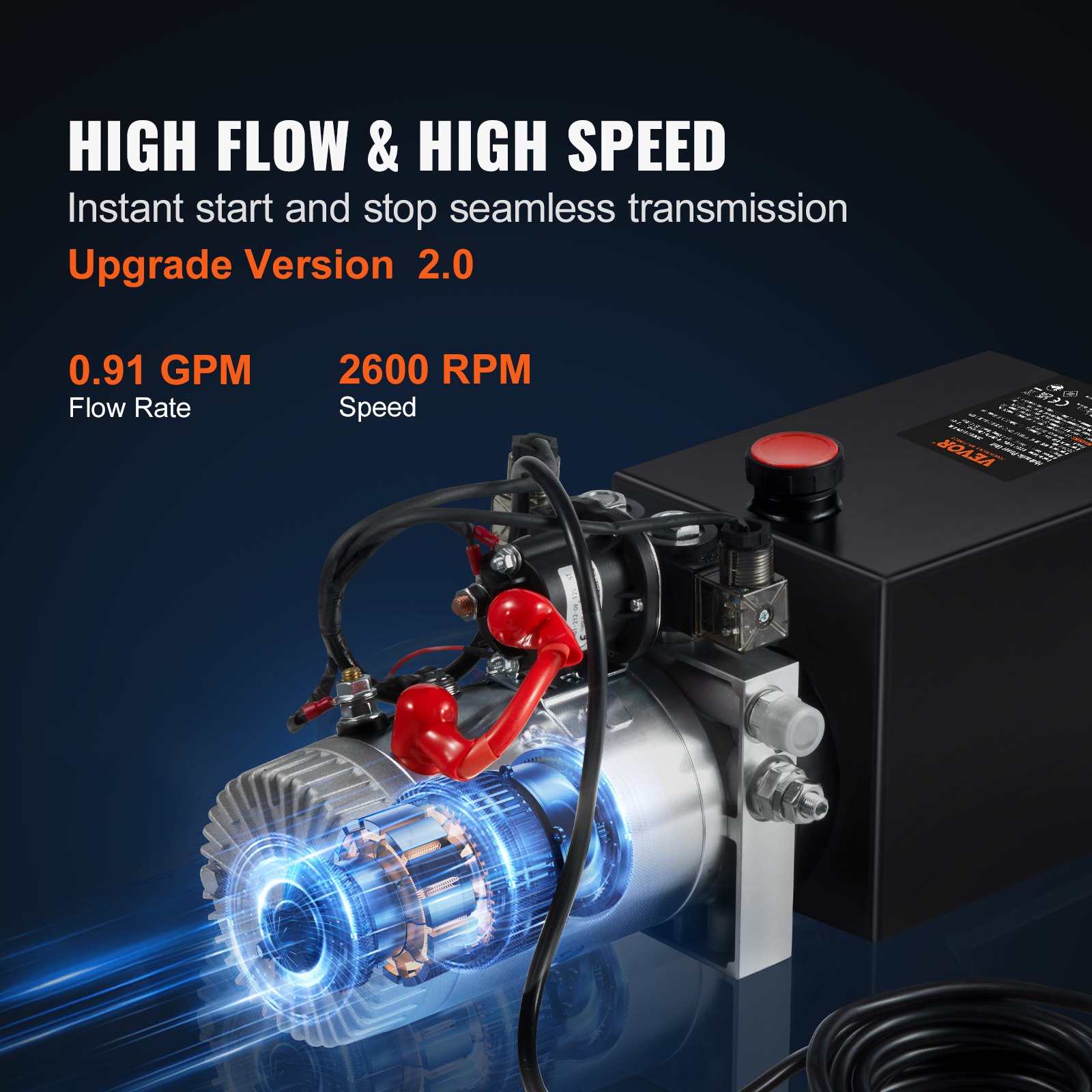

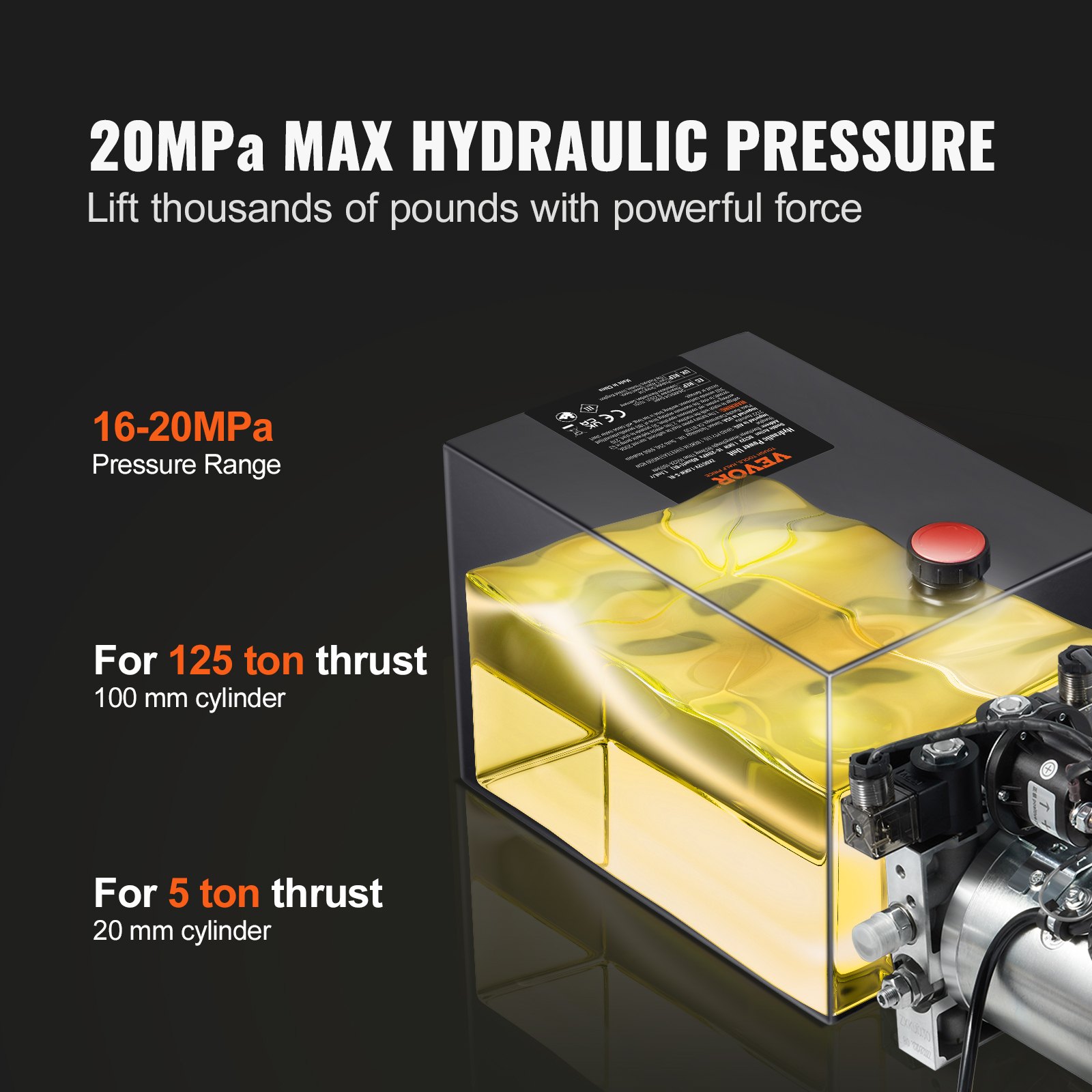

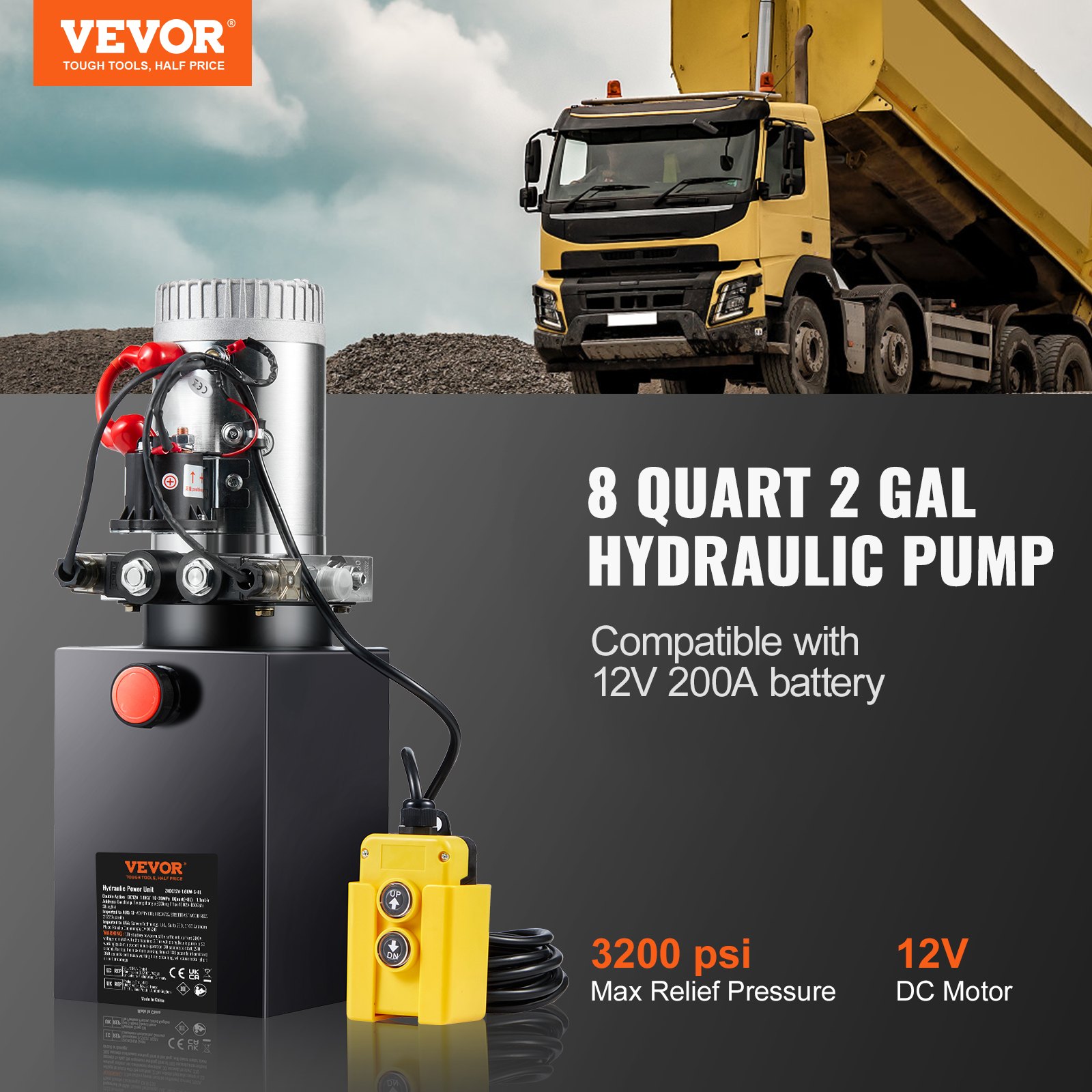

- Powerful performance: Our hydraulic pump features a 12V DC motor with 1.6 kW and delivers a high flow rate of up to 0.91 GPM. With an 8-quart tank capacity and an oil pressure of 16-20 MPa, this powerhouse generates a maximum pressure of 3200 psi; the tipper trailer pump can effortlessly move and easily lift heavy vehicles and machinery. Experience the power!
- Precise lifting with double action: Our hydraulic power unit is designed for precision and features a double-acting force mechanism. The hydraulic oil flows alternately into both ports, distributing the force evenly to your attachment. A built-in safety valve automatically releases the pressure if the limit is exceeded, ensuring safer operation and fewer breakdowns.

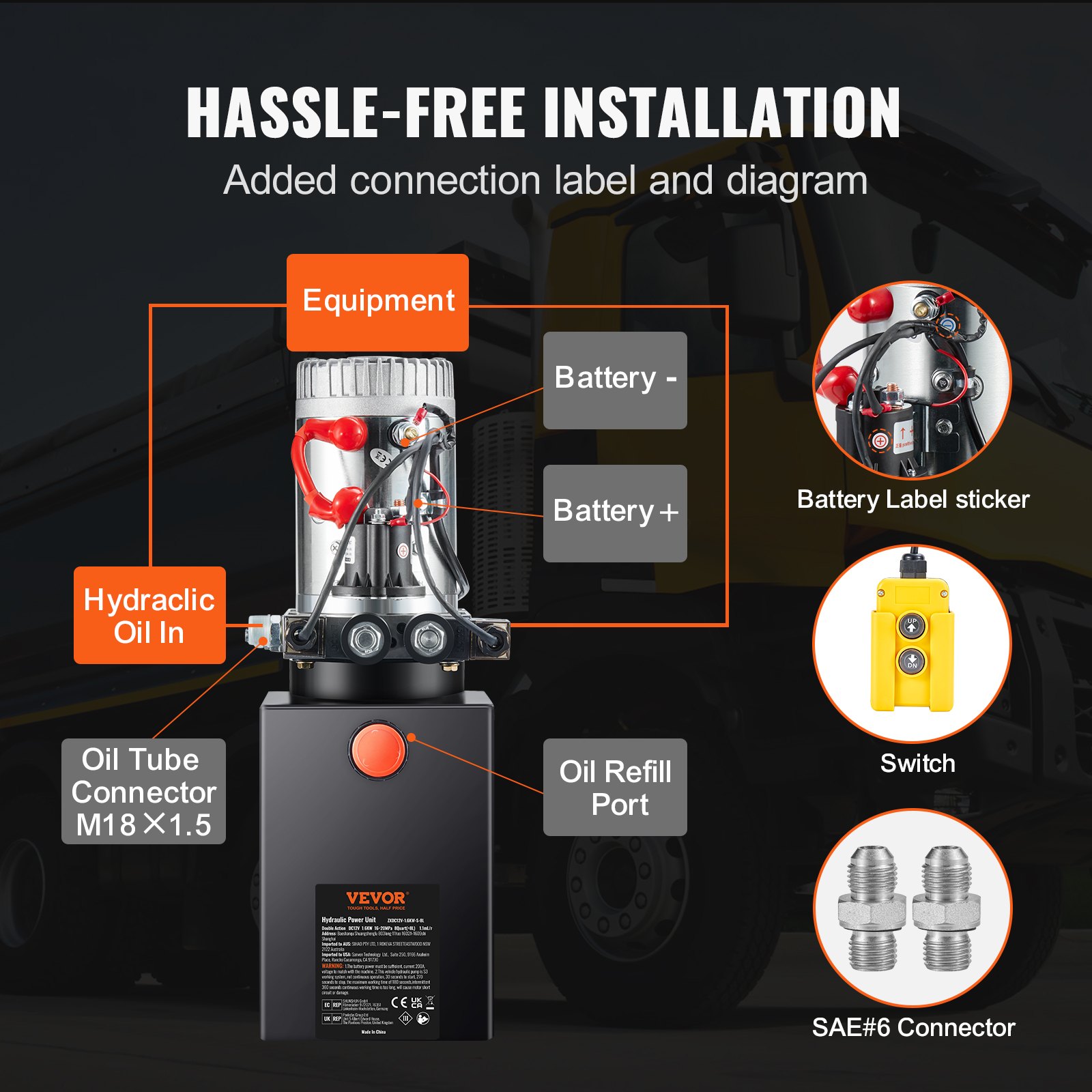

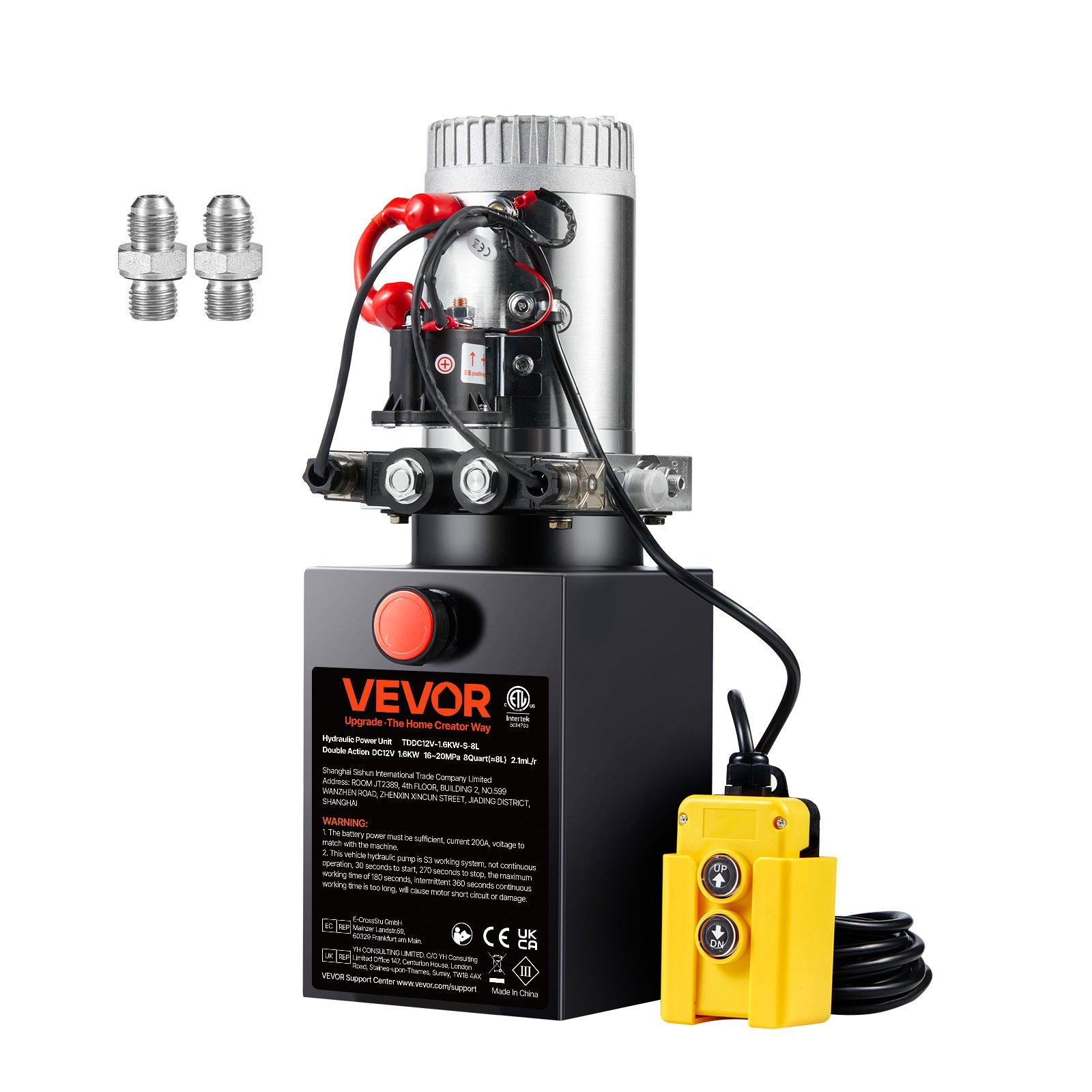

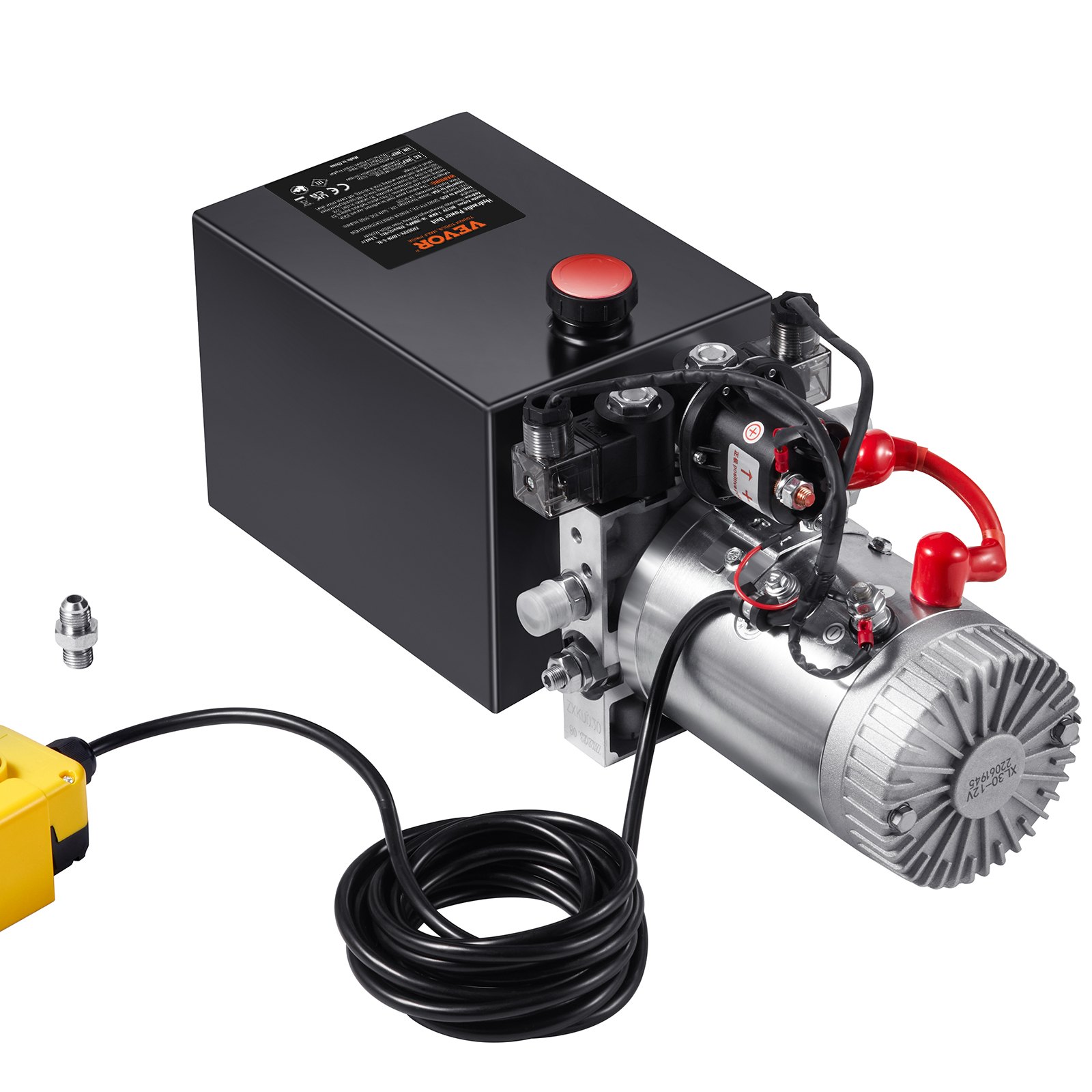

- Easy installation: The 12V hydraulic pump comes pre-assembled. Simply fill with hydraulic oil, connect the power supply and hoses – that's it. The VEVOR hydraulic pump is equipped with an SAE#6 converter, making it compatible with both metric and US (American) connections.
- Built to last: Our hydraulic pump is robustly constructed. It features a durable, all-around seal that minimizes the risk of oil leaks. The rustproof, solid steel tank ensures a long service life, even under heavy use and daily demands. It is designed to withstand the stresses encountered when installed on heavy equipment.
- Versatile: This double-acting hydraulic pump is not limited to a single task. It's a versatile workhorse suitable for a variety of lifting and pressing applications. From tipper trailers and container truck tailgates to hydraulic log splitters, small presses, lifting platforms, semi-electric wheelbarrows, bucket transporters, and more.
Frequently Bought Together
Reviews 0.0
All reviews are from verified purchases
Average rating based on 0 reviews
Reviews 0.0
All reviews are from verified purchases
See all 0 reviews
About this item

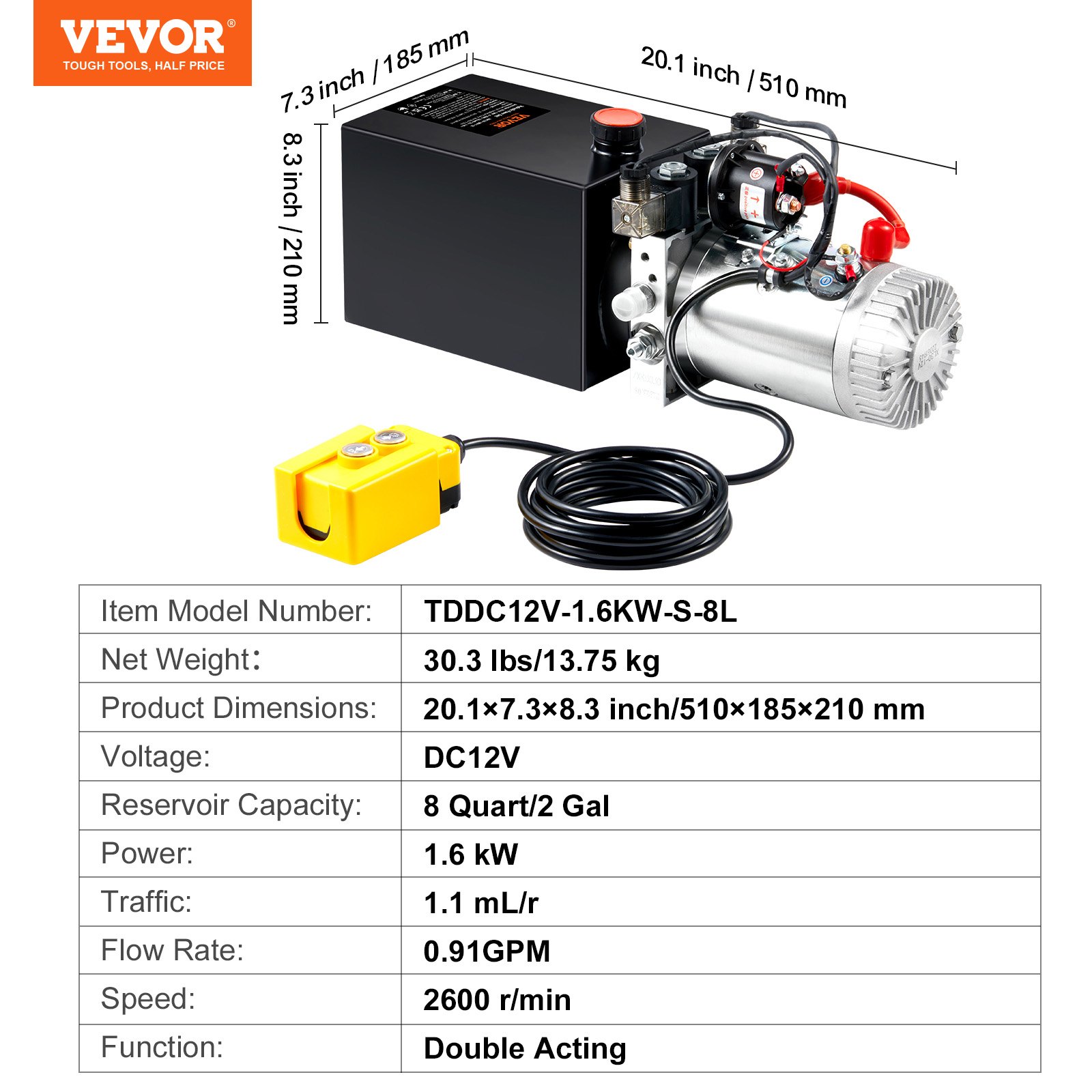

Product specification
- Item model number
- ZXDC12V-1.6KW-S-8L
- Voltage
- DC 12 V
- Type
- Double-acting
- Container capacity
- 8 qt / 2 gal
- Max. pressure
- 3200 psi
- Power
- 1.6 kW
- Traffic
- 1.1 ml/r
- Flow rate
- 0.91 GPM
- Speed
- 2600 rpm
- Material
- Steel (GC01)
- Net weight
- 30.3 lbs / 13.75 kg
- Product dimensions
- 20.1 x 7.3 x 8.3 inches / 510 x 185 x 210 mm
Description
Improve your strength!
It features a 12V DC motor with a power output of 1.6 kW. The double-acting unit ensures stable lifting operation. Simply fill it with hydraulic oil and connect the power supply and hoses. No complicated installation is required.
With its large fuel tank and powerful engine, this hydraulic pump effortlessly lifts heavy machinery, ensuring rapid start-up, precise control, and consistent reliability. Say goodbye to delays and frequent breakdowns.
Our double-acting power unit provides double lifting force. Hydraulic oil alternates between the two ports, distributing the force evenly to your equipment. This design saves energy and ensures precise control.
Note: Not for extended operation. When used in an S3 work system, the device operates in cycles: 30 seconds on, 270 seconds off, and a maximum continuous operating time of 180 seconds. For long-term operation, an intermittent operating time of 360 seconds is available.

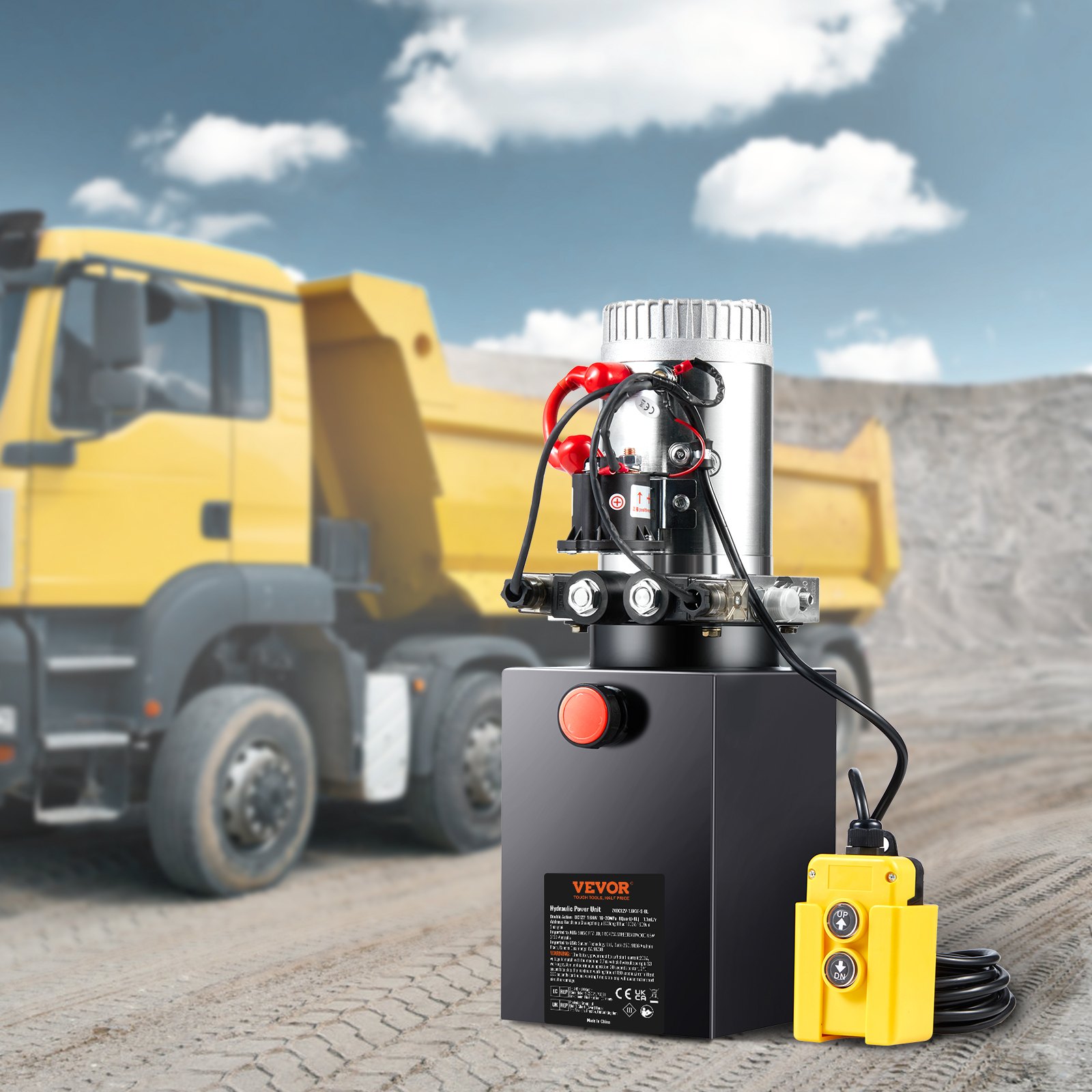

Professional mechanics and construction sites rely on this 12V hydraulic pump. It is your powerful ally for tasks such as operating tail boom lifts, scissor lifts, vertical work platforms, semi-electric pushers, tipper trailers, and much more.
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (1)
What is relief valve pressure range, can it be adjusted? I see only maximum (3200 psi). Regards
This pressure is 16 MPa and can be adjusted. You can adjust it up or down, up to 3200PSI.
By vevor
Helpful
(
0
)
YXYYB12VZLDJK4FRMV0
VEVOR Hydraulic Pump Hydraulic Power Pack 12V Hydraulic Power Pack 1600W, Double-Acting Hydraulic Pump Hydraulic Power Pack, 2 Gal Tank Hand Pump Hydraulic Power Pack, for Elevators, Forklifts, etc.
0 0 Reviews
975 99 zł
