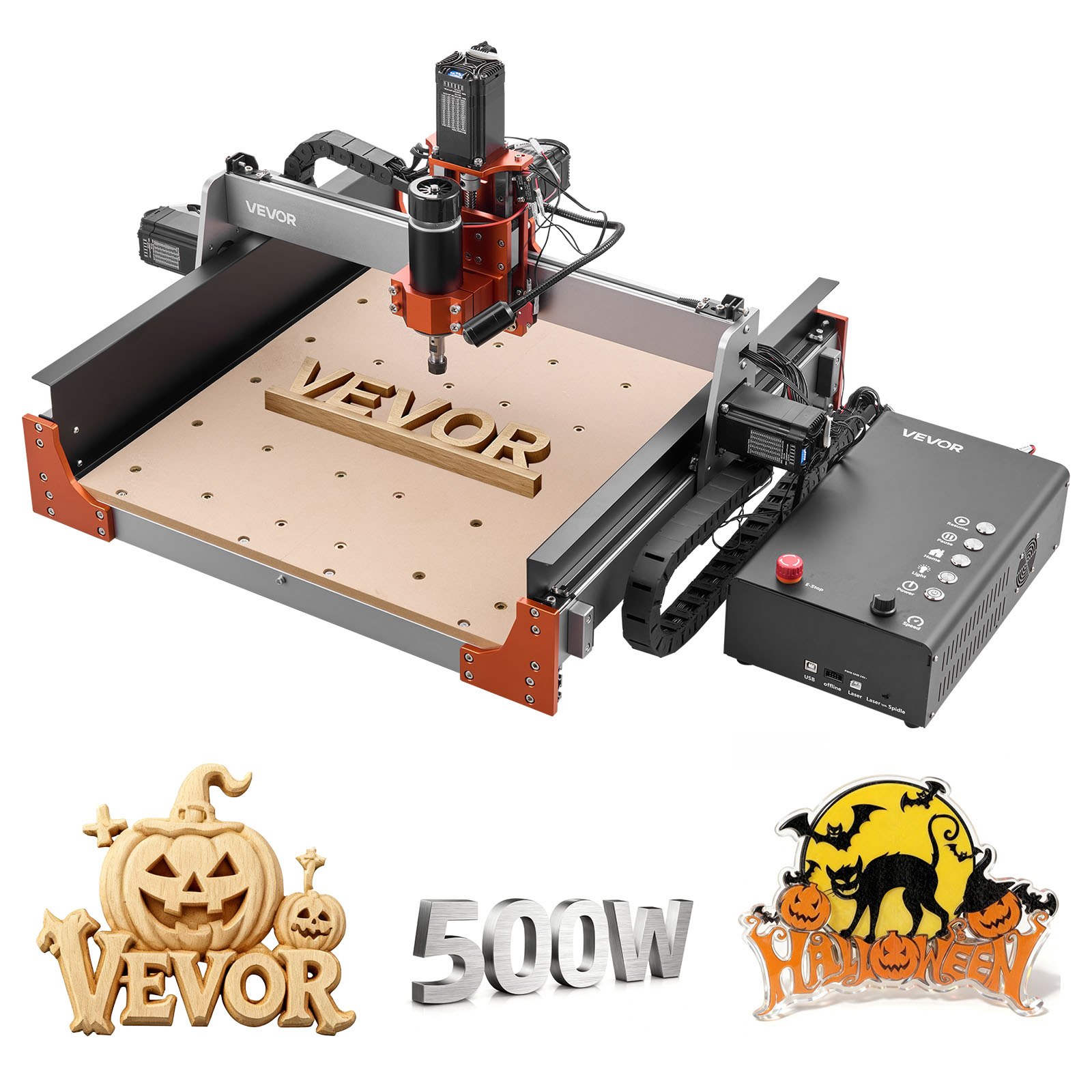

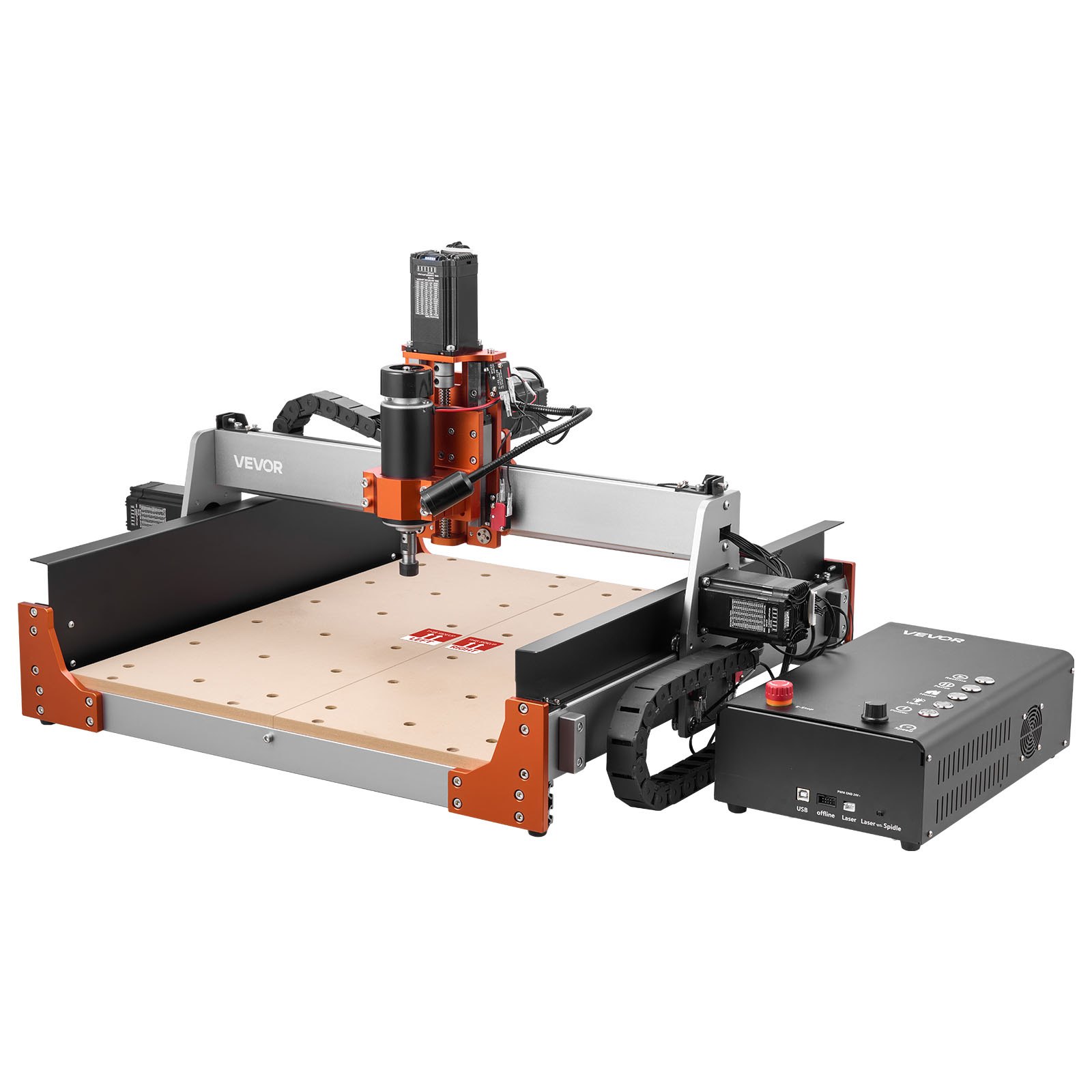

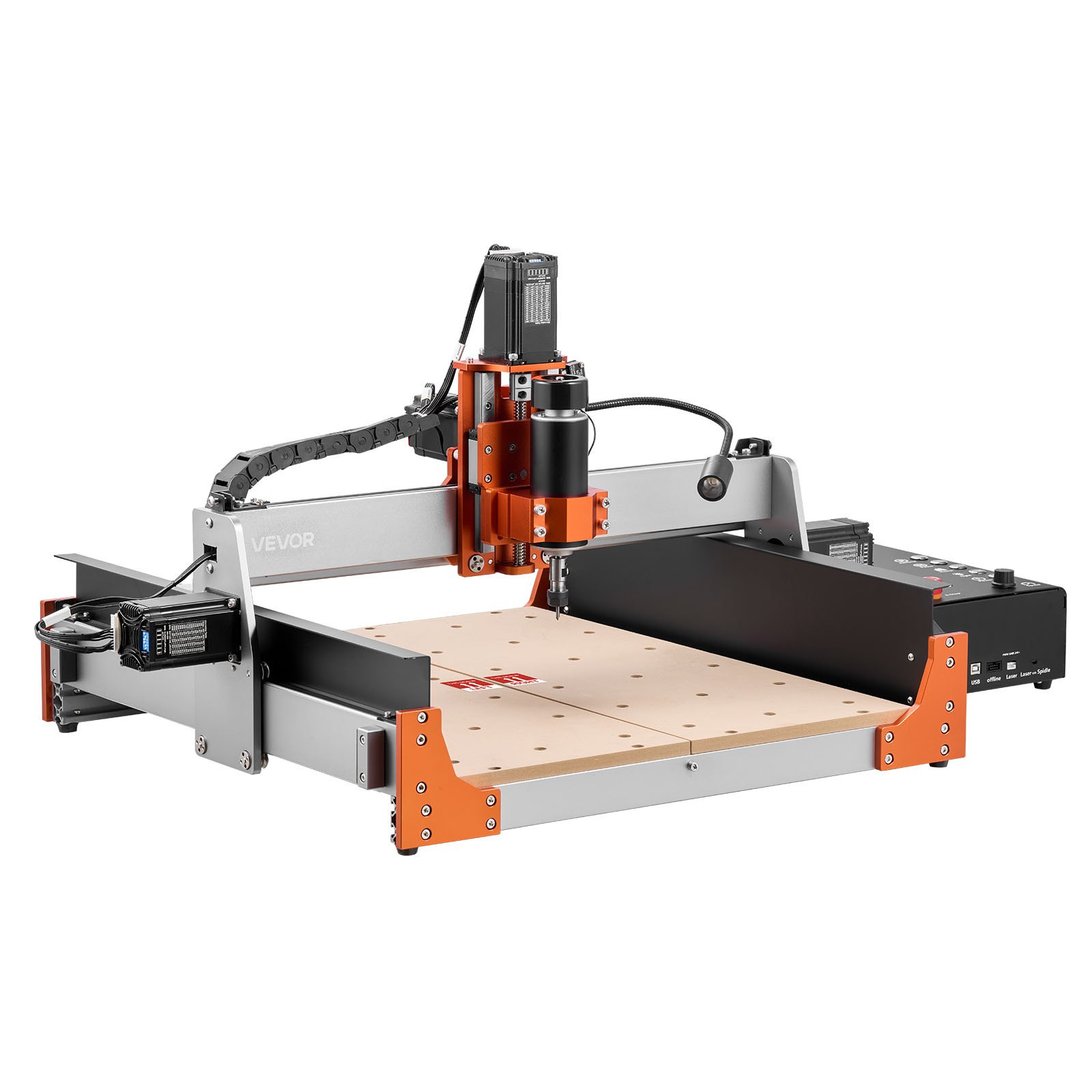

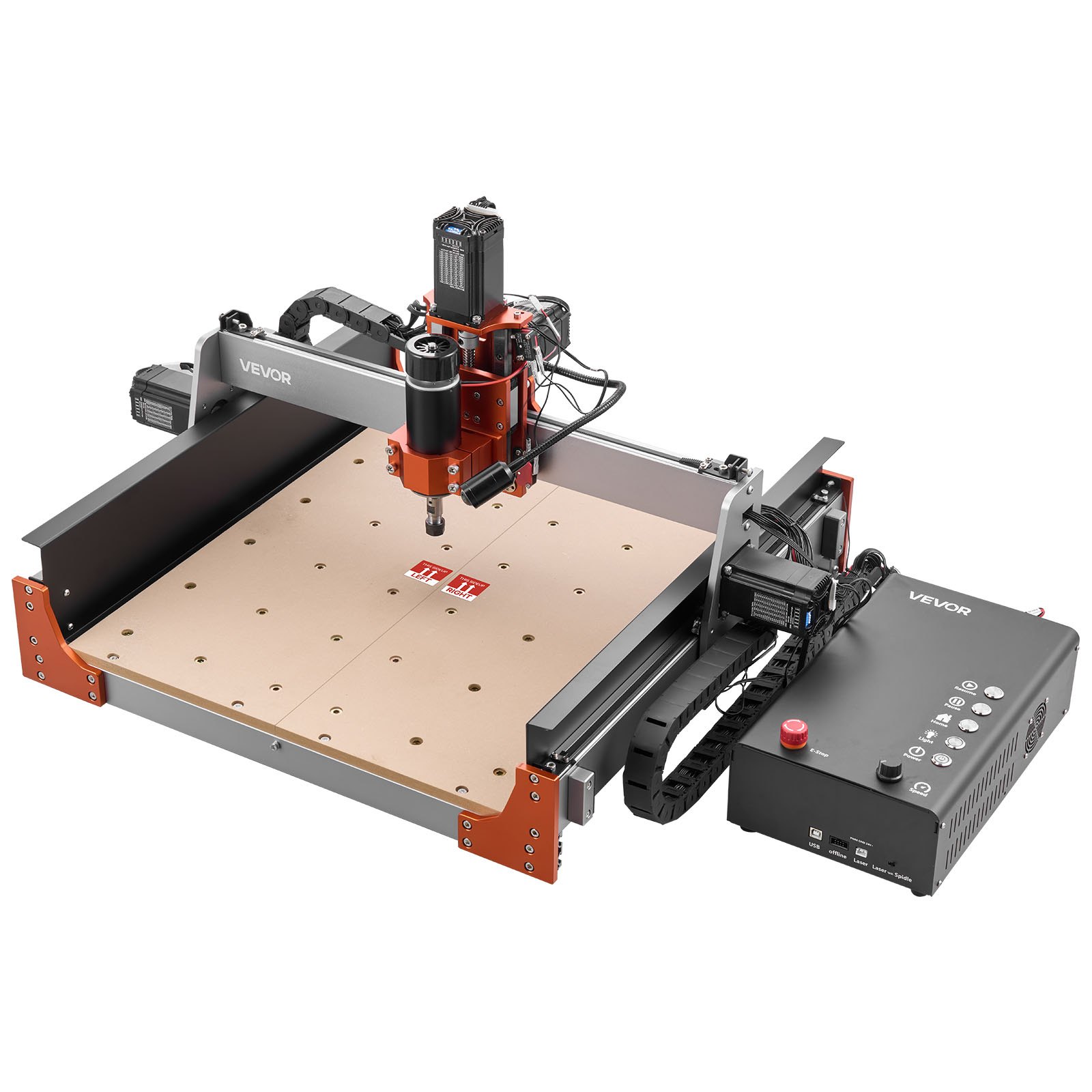

VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting
VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting
VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting
VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting
VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting
VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting
VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting
+12
More
VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting
VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting
VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting
VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting
VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting
VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting
VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting
VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting
VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting
VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting
VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting
VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails and Ball Screw, 400 x 400 x 95 mm Working Area, Trim Router, for Wood Acrylic Carving Cutting

Features & Details

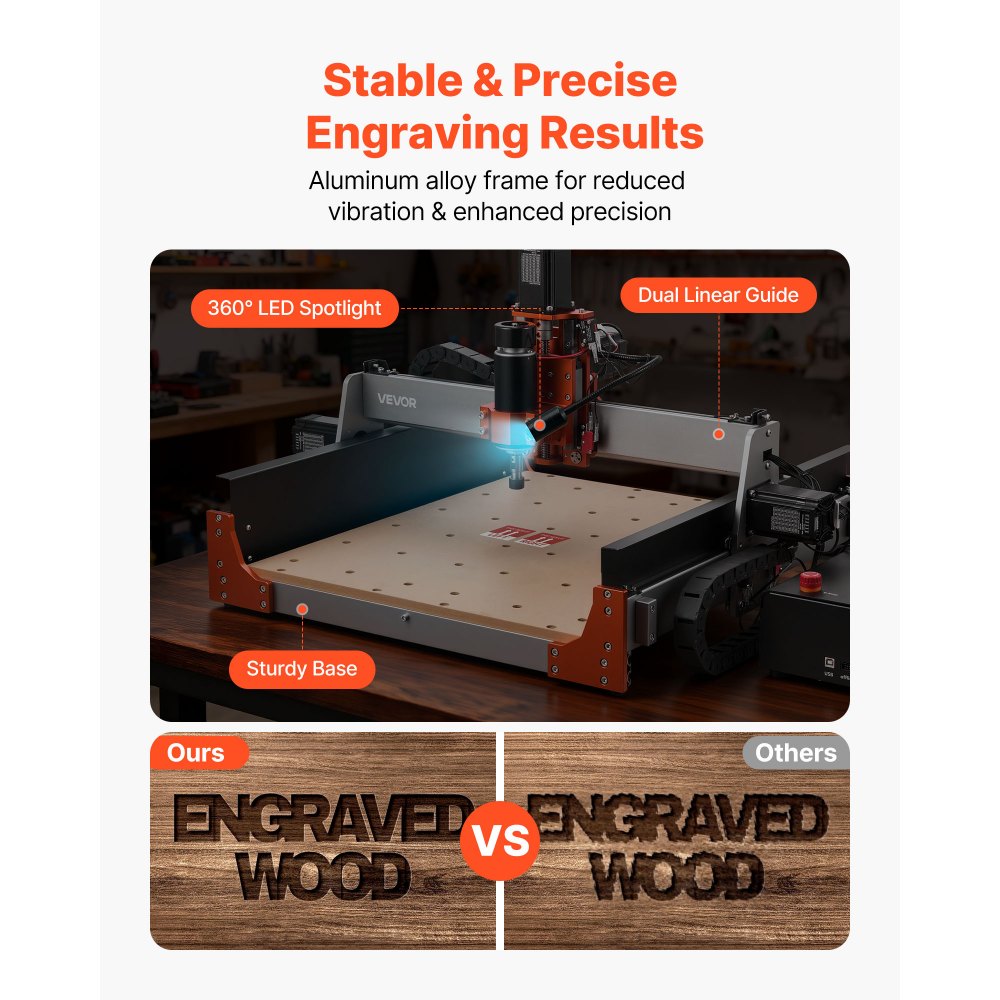

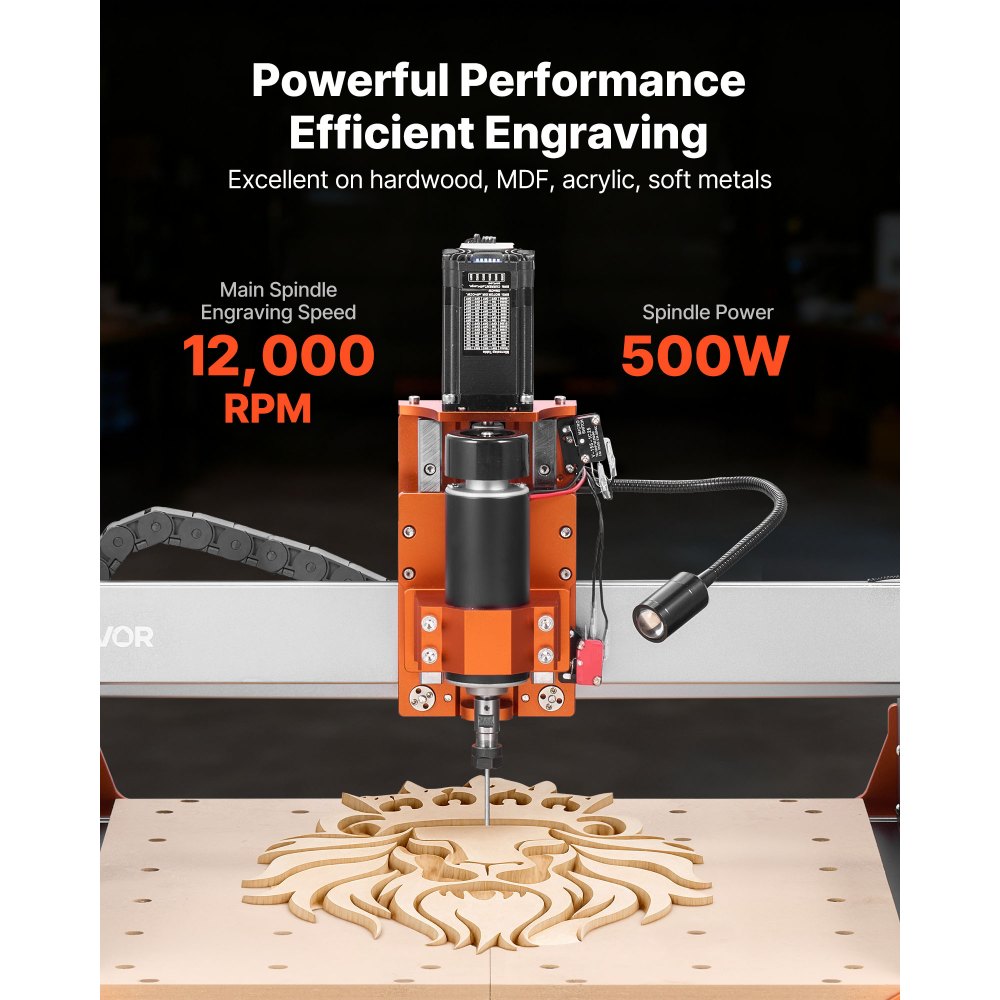

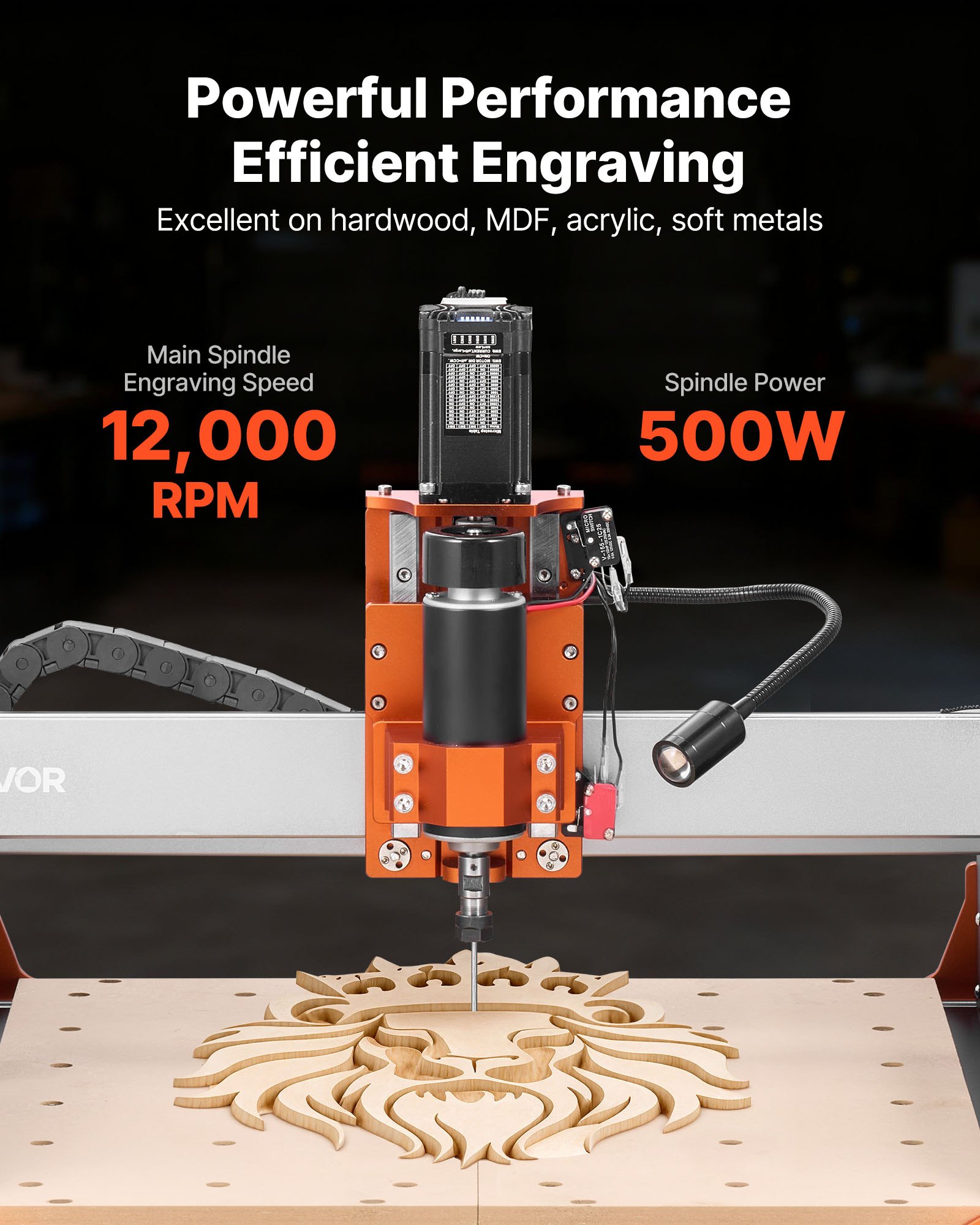

  • High-Precision Engraving: The CNC router machine features an aluminum alloy frame and dual linear rails for vibration-free accuracy. With a 500W spindle, it engraves wood, acrylic, and soft metals. Repeat positioning accuracy: ≤ 0.05 mm

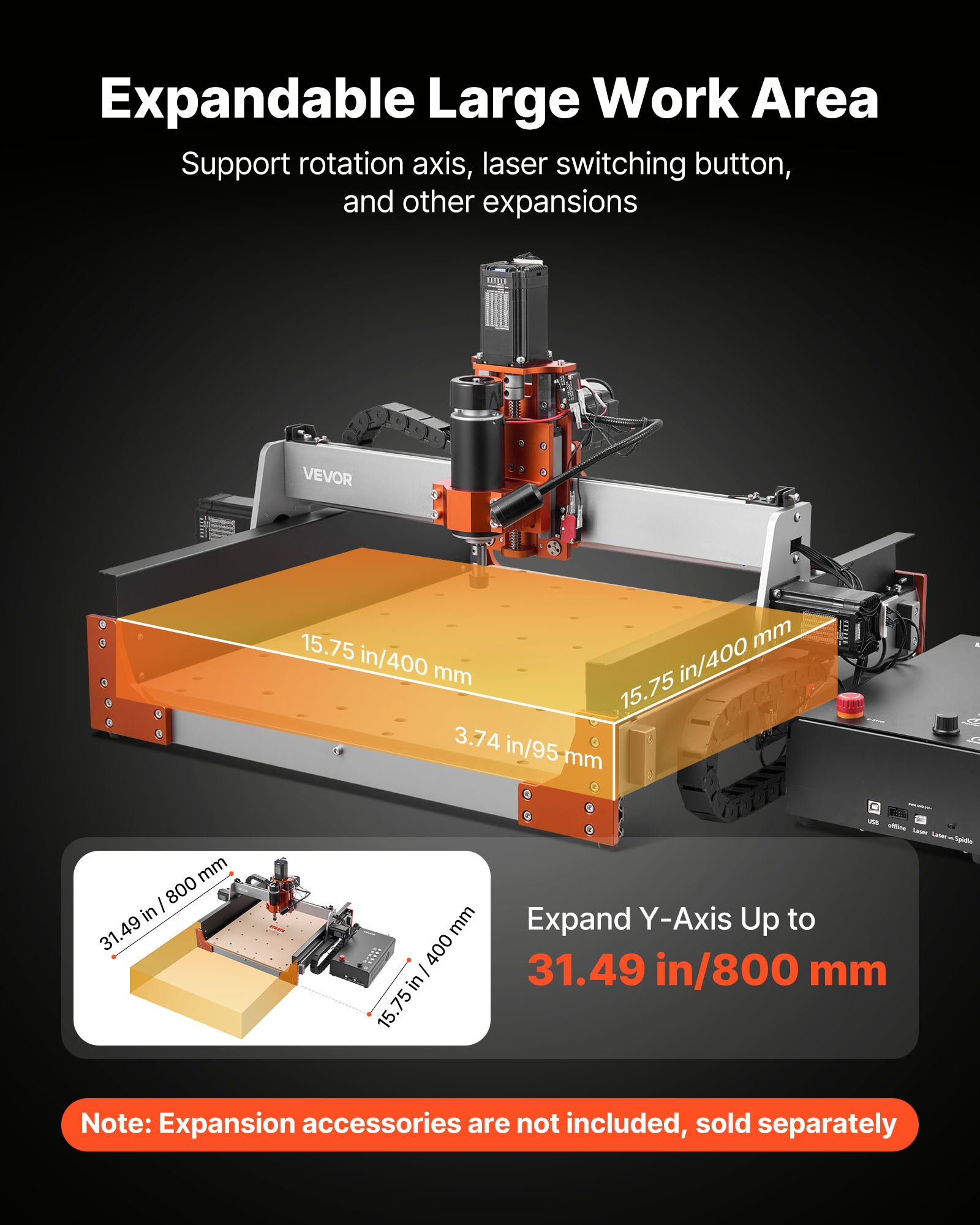

  • Large Work Area & Expandability: Create without limits on the 15.75 x 15.75 x 3.74 in (400 x 400 x 95 mm) work area, expandable Y-axis up to 31.49 in (800 mm). With 52 mm and 65 mm collets for various spindle types. Supports expansion options for the laser module and rotary axis. Note: Expansion accessories are not included, sold separately

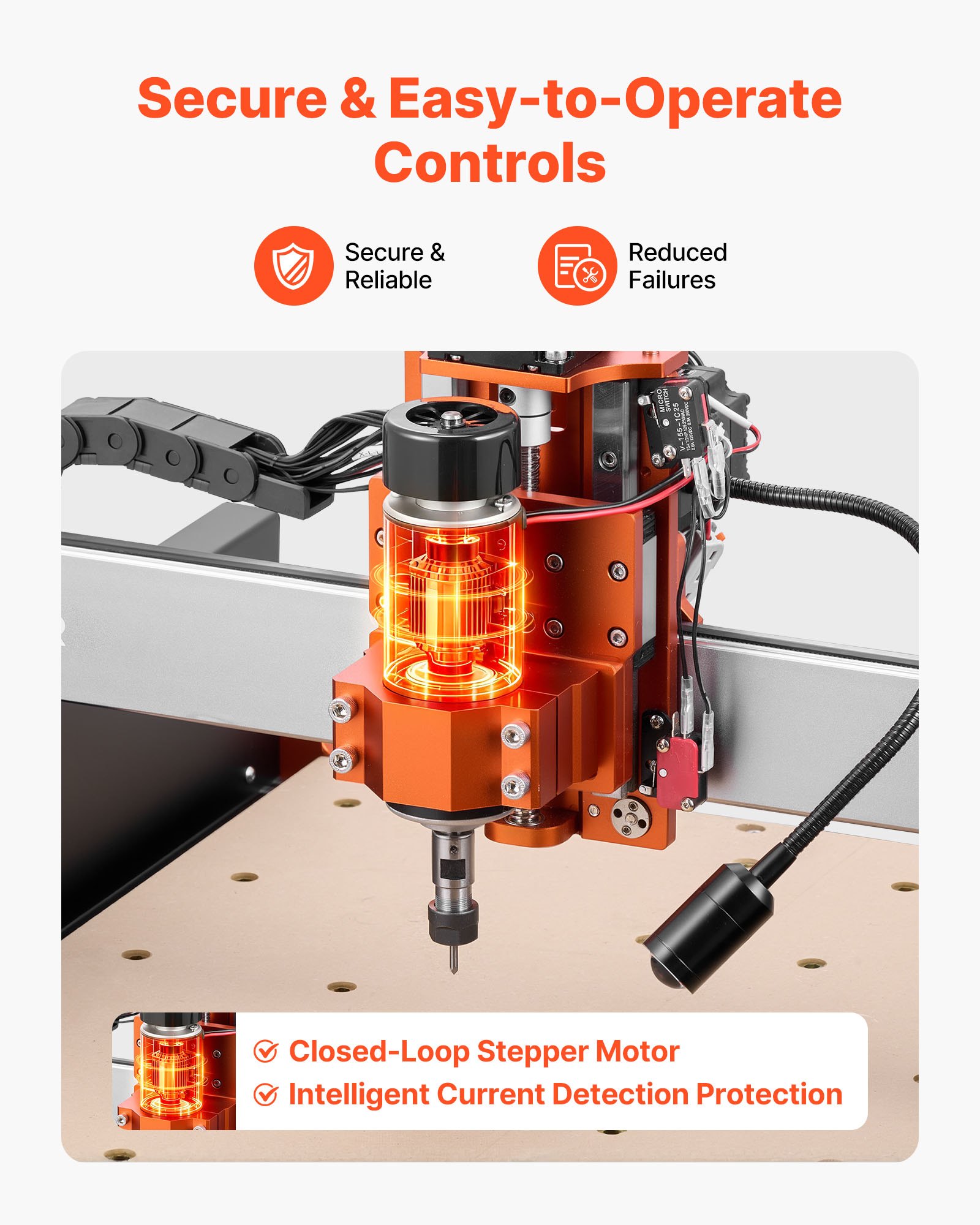

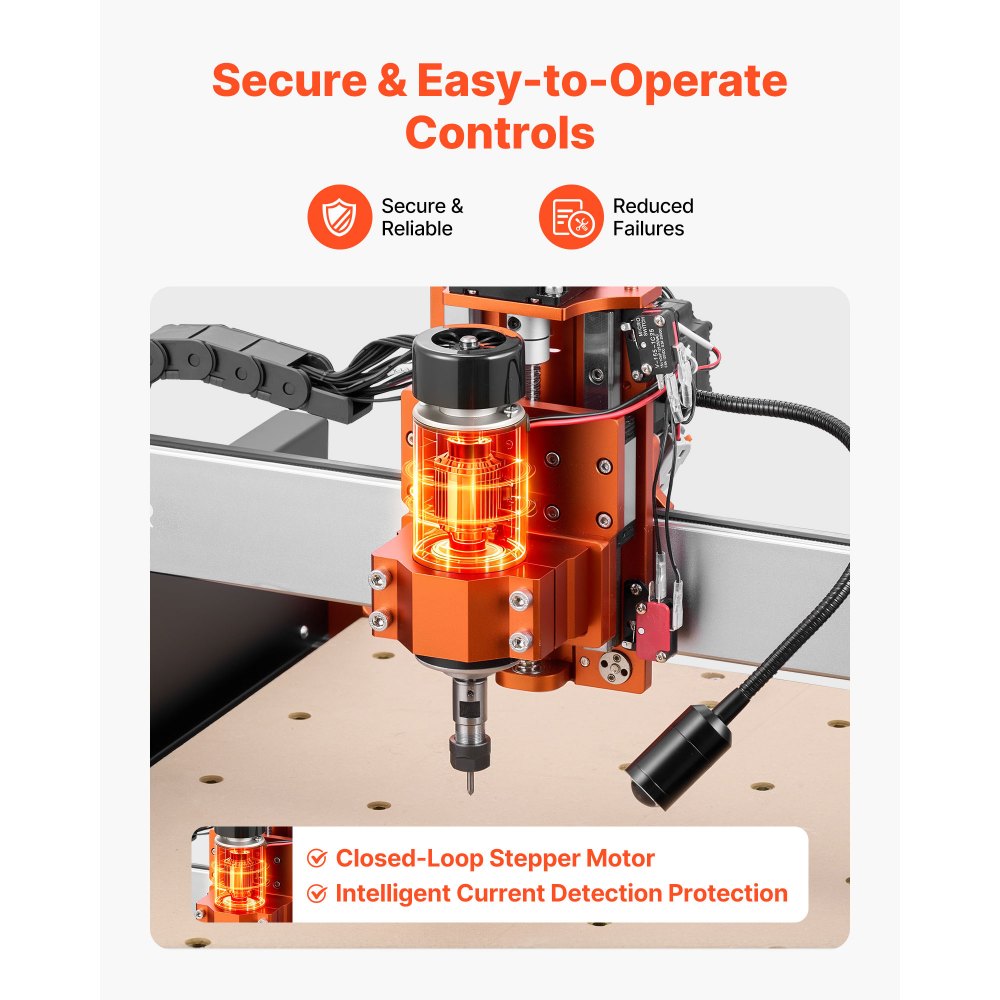

  • Secure & Durable Build: Equipped with a NEMA23-76 closed-loop stepper motor, this CNC wood router ensures smooth and quiet operation (≤75 dB). The spindle features a current detection protection, extending lifespan up to 5000 hours, and enhancing security

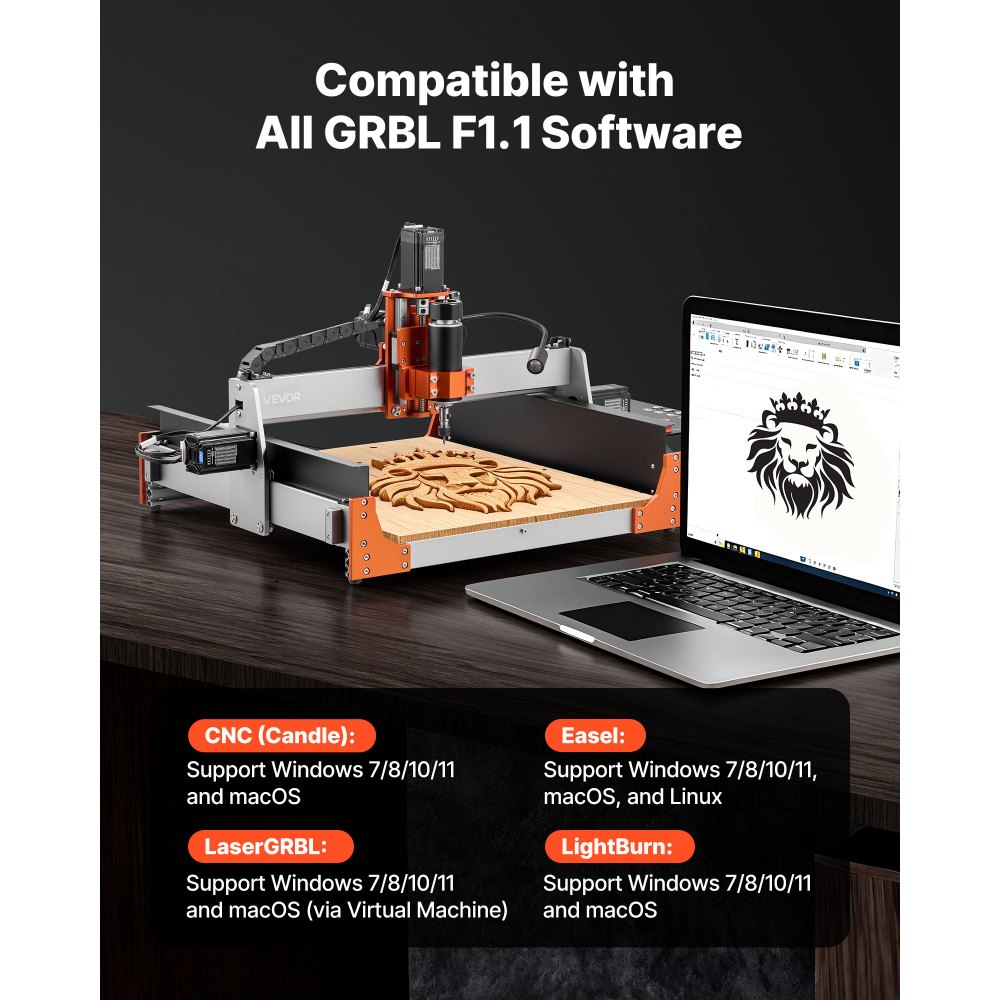

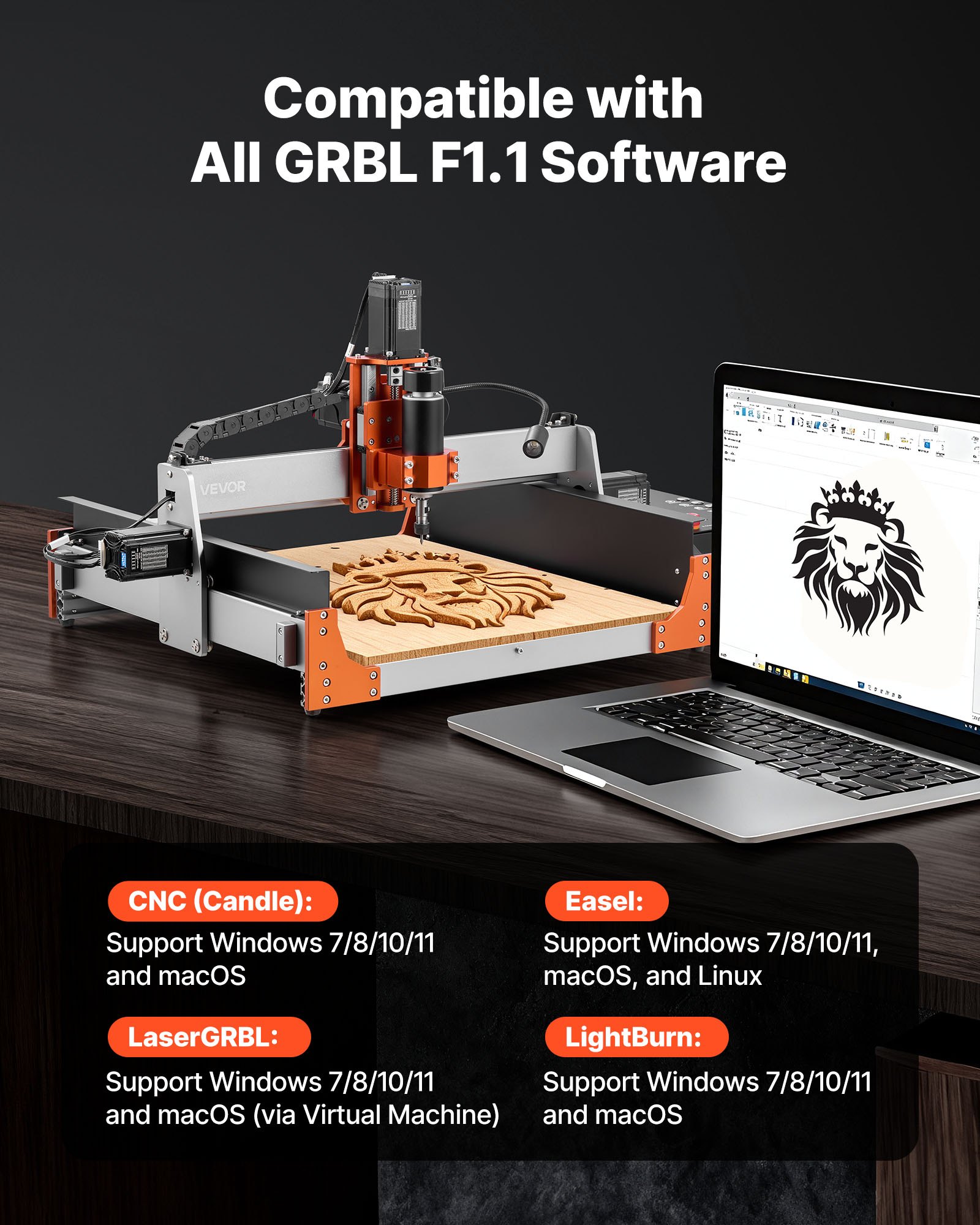

  • Wide Software Compatibility: This CNC wood router is compatible with all software that supports GRBL f1.1 firmware. Includes Candle software for easy setup. It works with Mac/Windows/Linux systems and supports CNC (Candle), Easel, LaserGRBL, and LightBurn

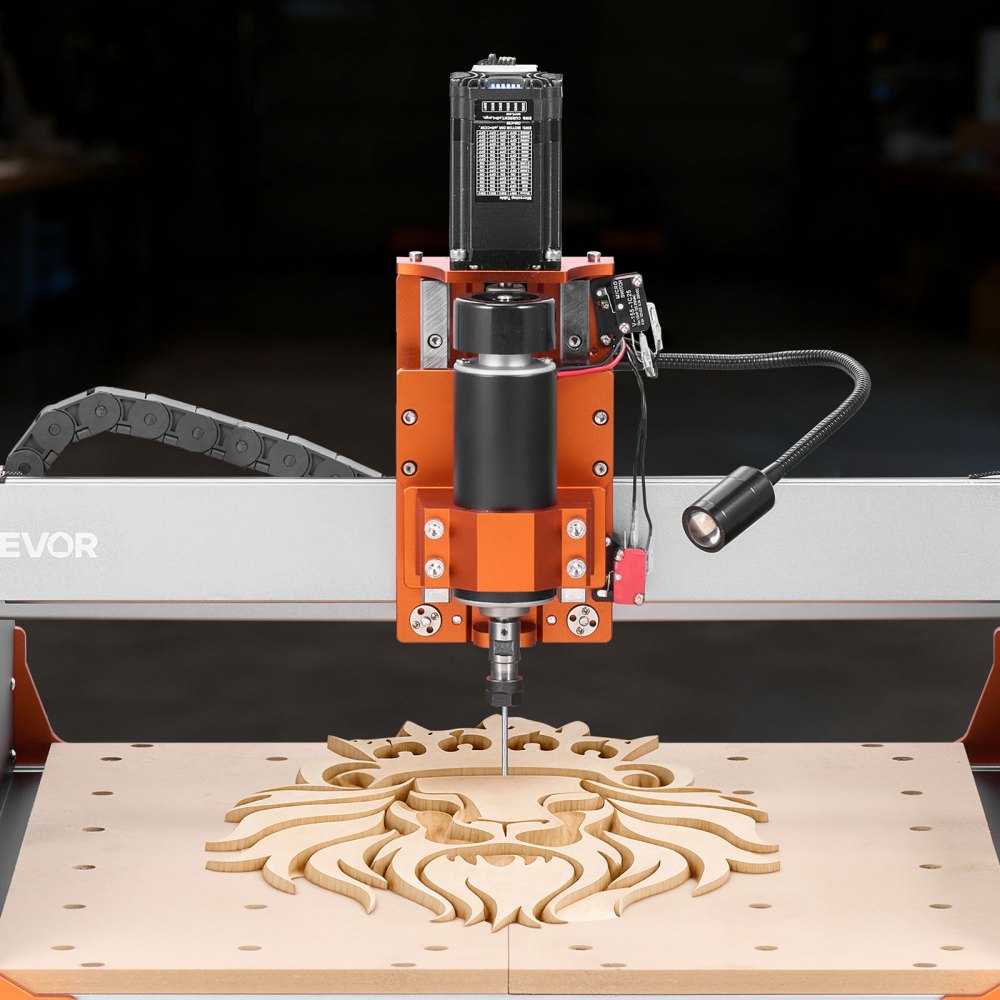

  • Easy Assembly & Operation: Key components come pre-assembled and pre-wired for quick setup. This CNC router machine is built with a 360° LED spotlight to reduce Z-axis shadows for clearer visibility, while the rotary knob provides precise spindle control

Frequently Bought Together

Reviews 5.0
All reviews are from verified purchases
Average rating based on 6 reviews

See all 6 reviews

About this item

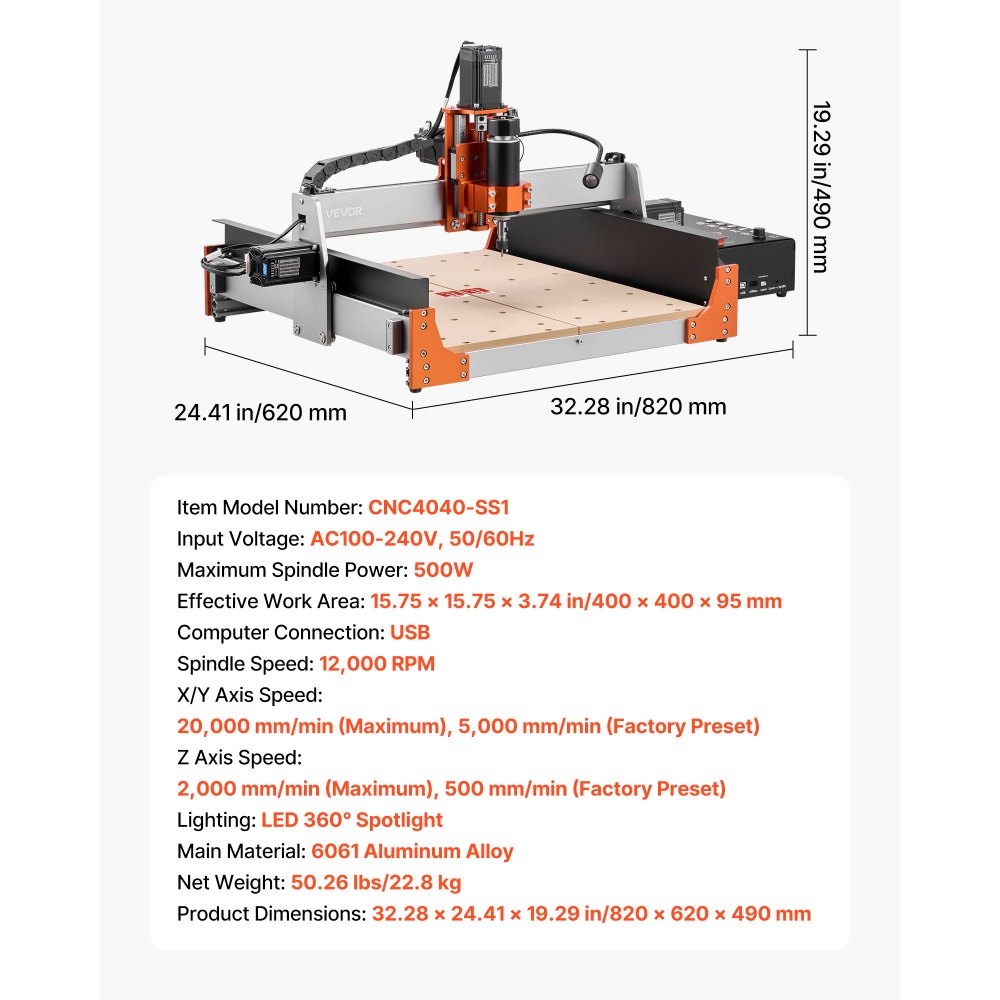

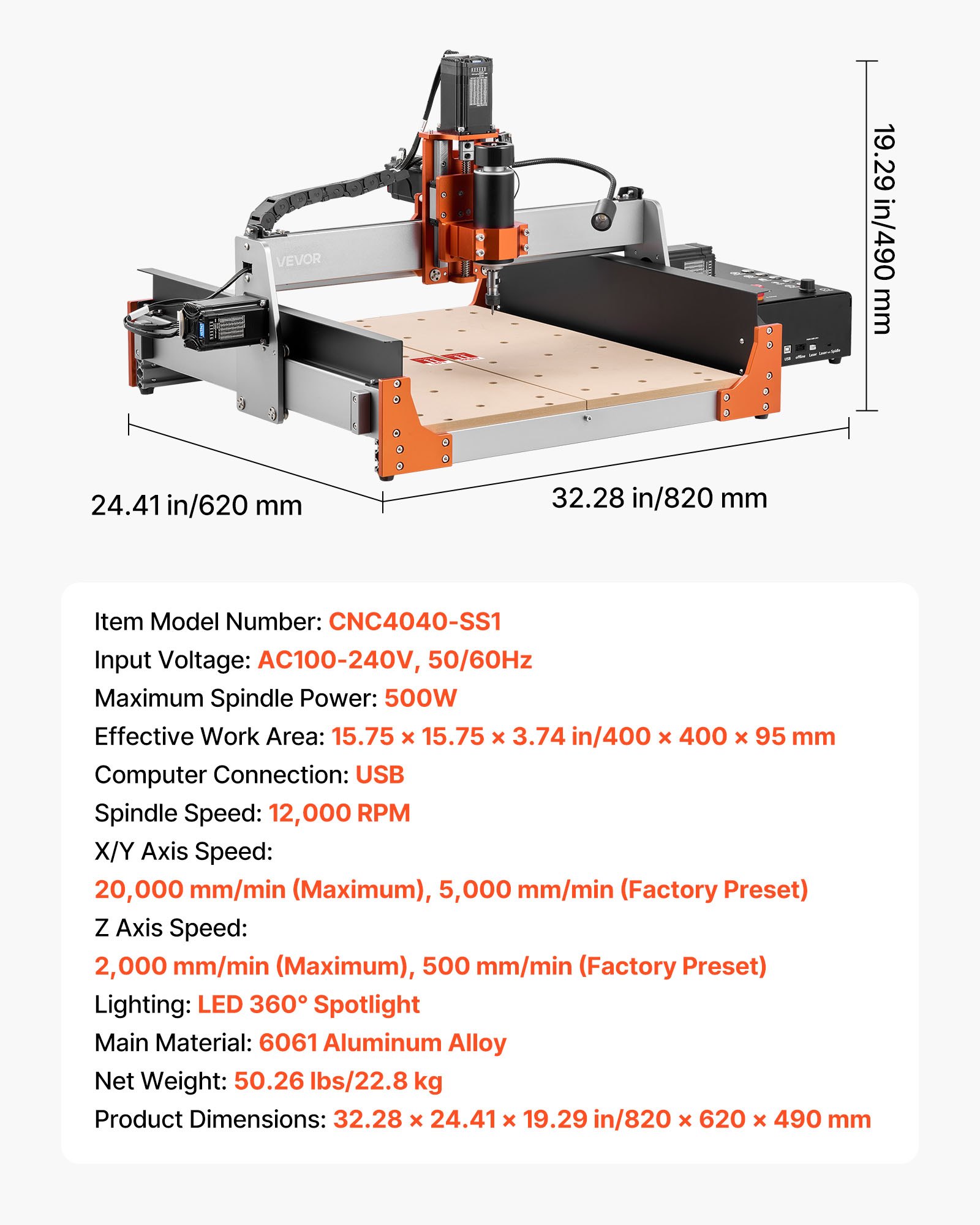

Product specification
Item Model Number
CN C4040-SS1
Input Voltage
AC 100-240V, 50/60Hz
Maximum Spindle Power
500W
Effective Work Area
15.75 x 15.75 x 3.74 in/400 x 400 x 95 mm
Computer Connection
USB
Spindle Speed
12,000 RPM
X/Y Axis Speed
20,000 mm/min (Maximum), 5,000 mm/min (Factory Preset)
Z Axis Speed
2,000 mm/min (Maximum), 500 mm/min (Factory Preset)
Lighting
LED 360° Spotlight
Main Material
6061 Aluminum Alloy
Description
500W CNC Router Machine with Dual Linear Rails
Supports Y-axis, laser module, and rotary axis expansion, creating complex projects with a 500W spindle and dual linear rails. Compatible with all software supporting GRBL f1.1 firmware, it makes cutting, drilling, and engraving a breeze across materials like wood, leather, vinyl, and soft metals.
Key Features

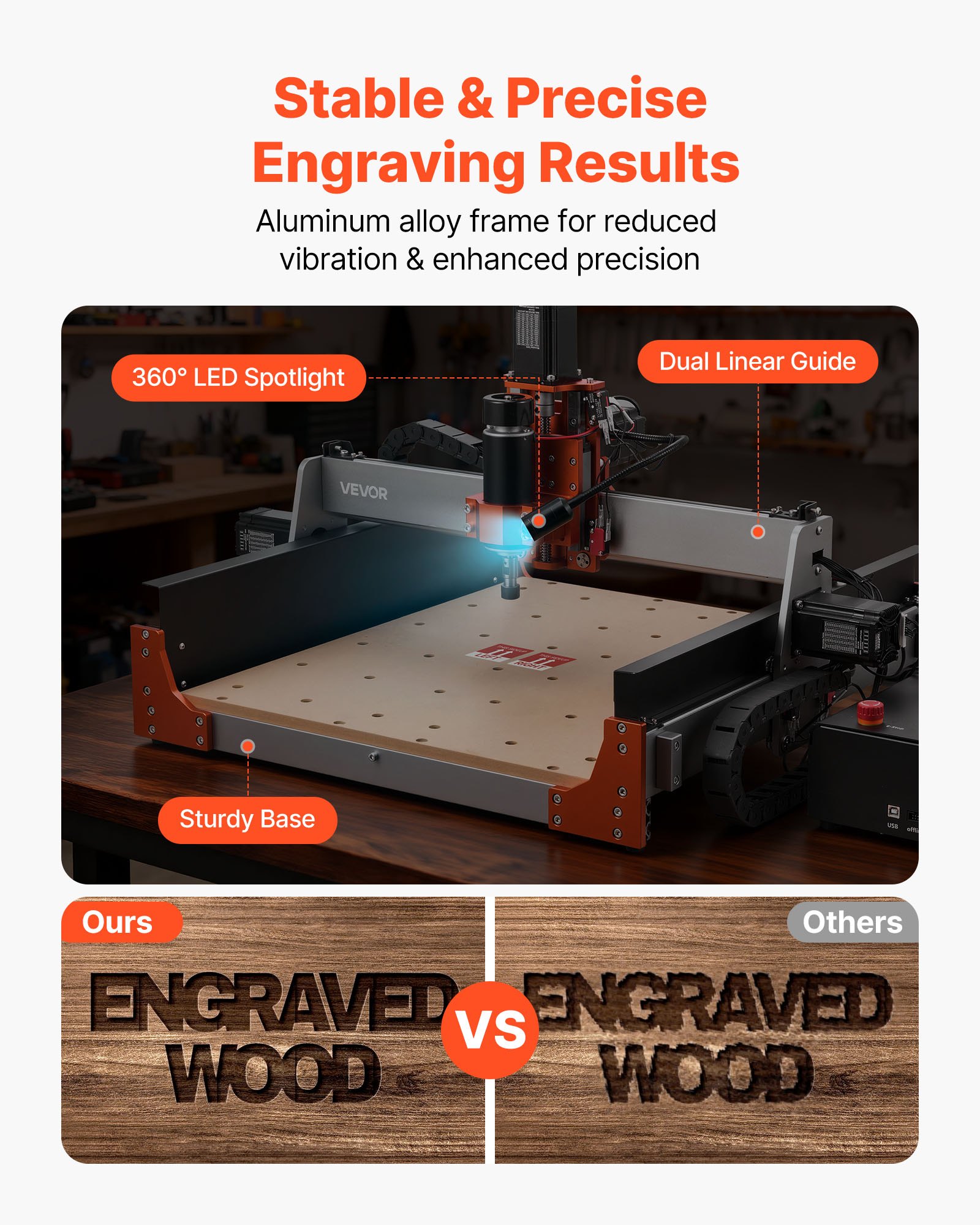

Aluminum Alloy Frame
Our CNC router machine is equipped with an aluminum alloy frame, effectively reducing vibrations to ensure precise engraving.
Stainless Steel Wheels
Stainless Steel Wheels

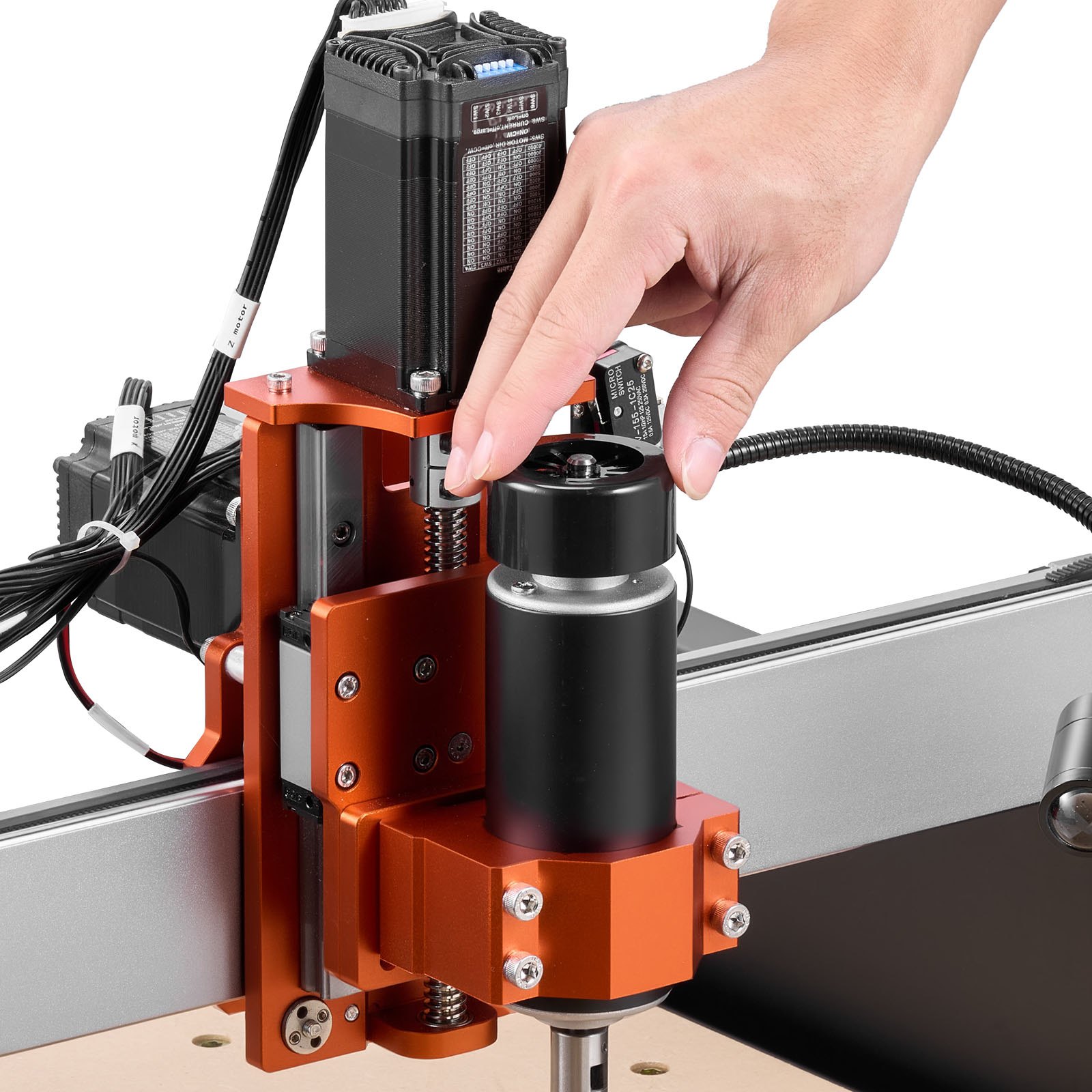

High Torque Stepper Motor
Our CNC router engraver machine comes with a stepper motor, providing powerful performance and precise control for every engraving task.
