Features & Details
- Unrivaled quality: The VEVOR 2.2 kW, 10 A 3 HP frequency converter (VFD) delivers unsurpassed quality and performance. With a single-phase AC 220-240 V input and a three-phase AC 220-240 V output, it ensures smooth start and stop, consistent motor control, and energy efficiency. Input frequency: 50/60 Hz; output frequency: 0-400 Hz.

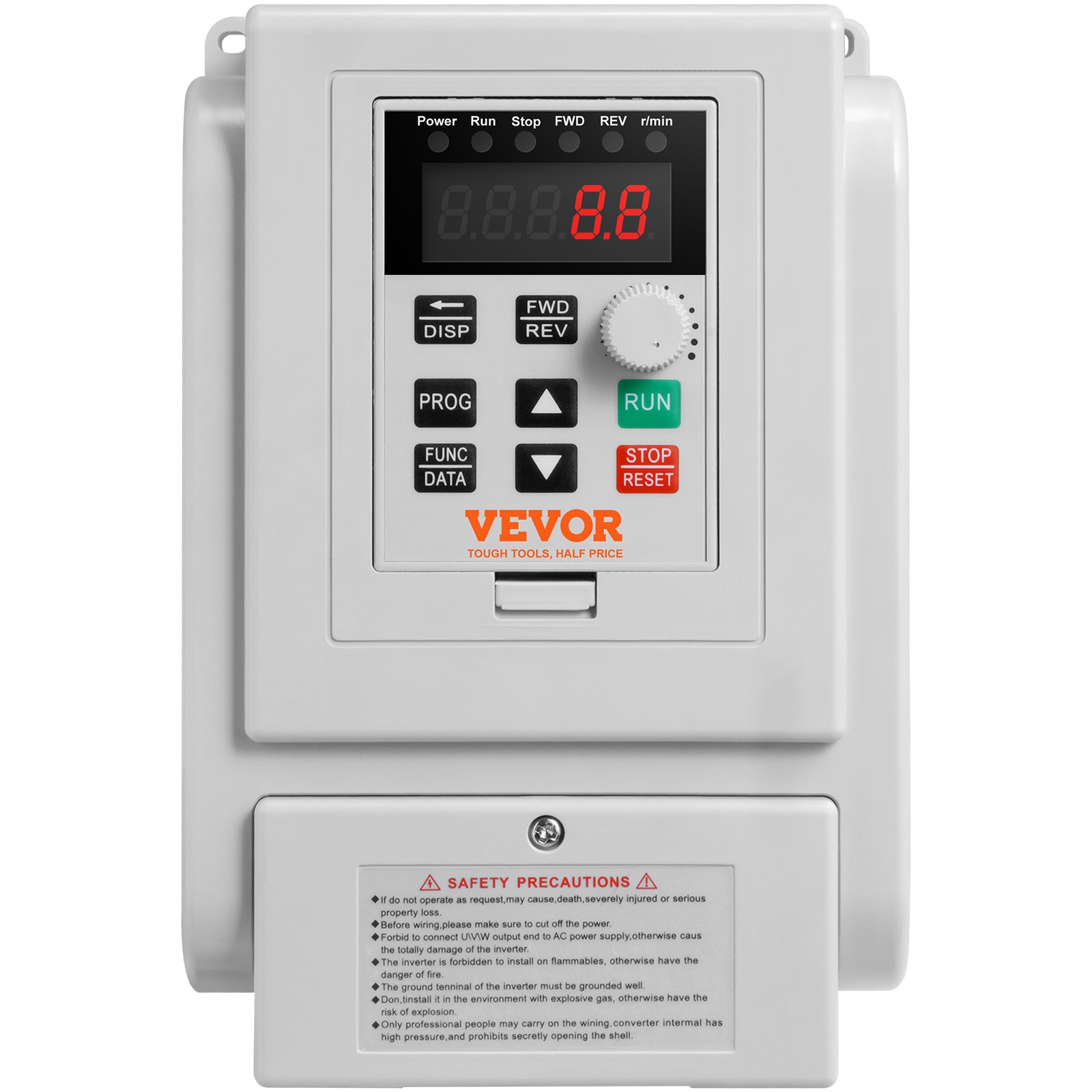

- Effortless setup and operation: The detailed instructions make setting the parameters a breeze. An intuitive control panel, a clear display, and a frequency control knob simplify operation. The detachable control panel with a 20 cm cable allows for convenient remote control.
- Safety and durability redefined: Our VFD features a 10-fold protection system that safeguards against overcurrent, overload, overvoltage, phase failure, and more. Combined with the triple-protected circuit board, we prioritize your safety and the product's longevity.

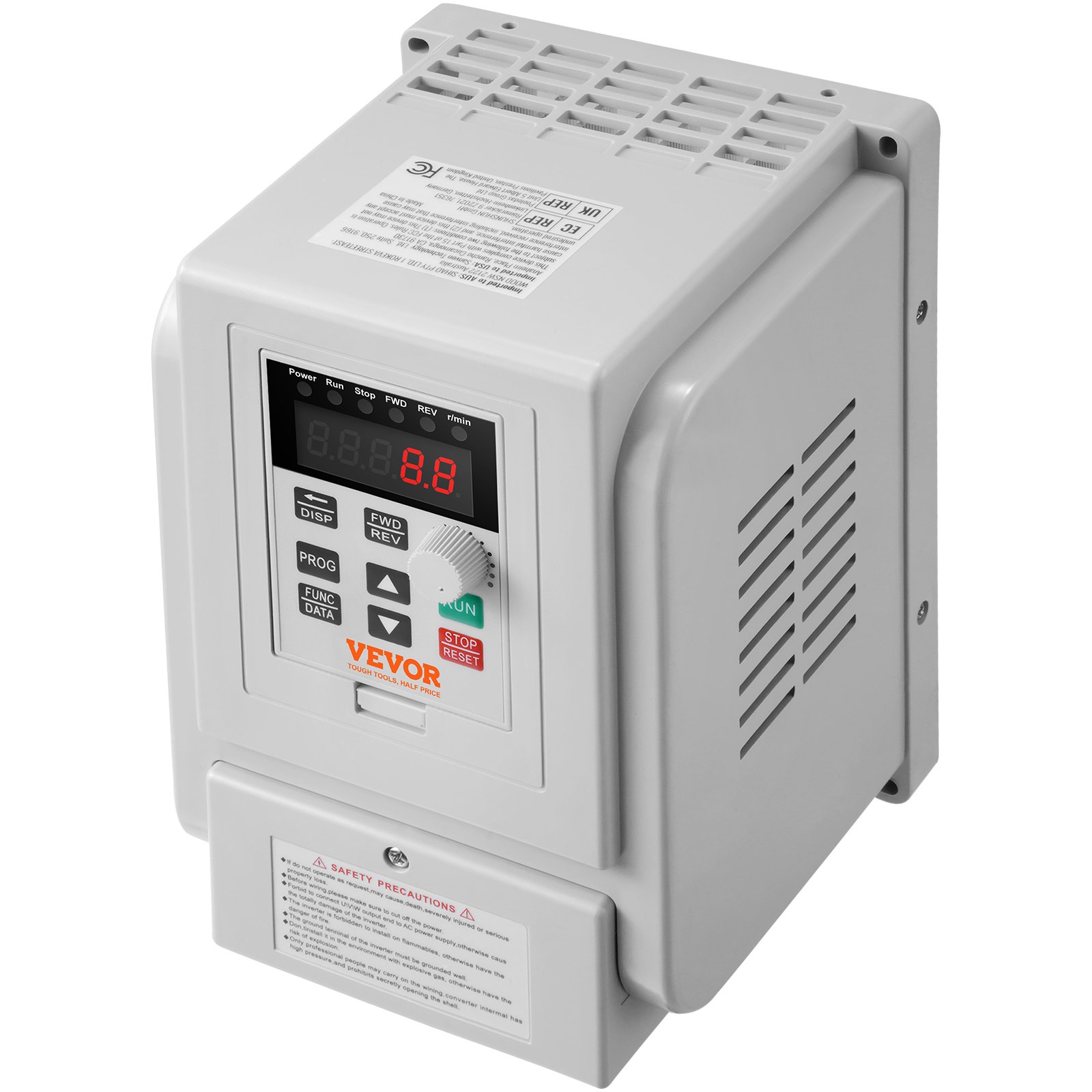

- Efficient power in silence: The frequency converter's high-performance fan ensures rapid cooling during extended use. Its multi-sided design with multiple holes promotes optimal airflow while ensuring quiet operation.
- Master of versatility: Our VFD is ideal for driving 3-phase motors in various machines, including compressors, lathes, fans, milling machines, etc. Please note: It does not support external braking resistors. For heavier motor loads, please choose a higher-powered VFD for best results.
Frequently Bought Together
Reviews 3.0
All reviews are from verified purchases
Average rating based on 4 reviews
Reviews 3.0
All reviews are from verified purchases
See all 4 reviews
About this item

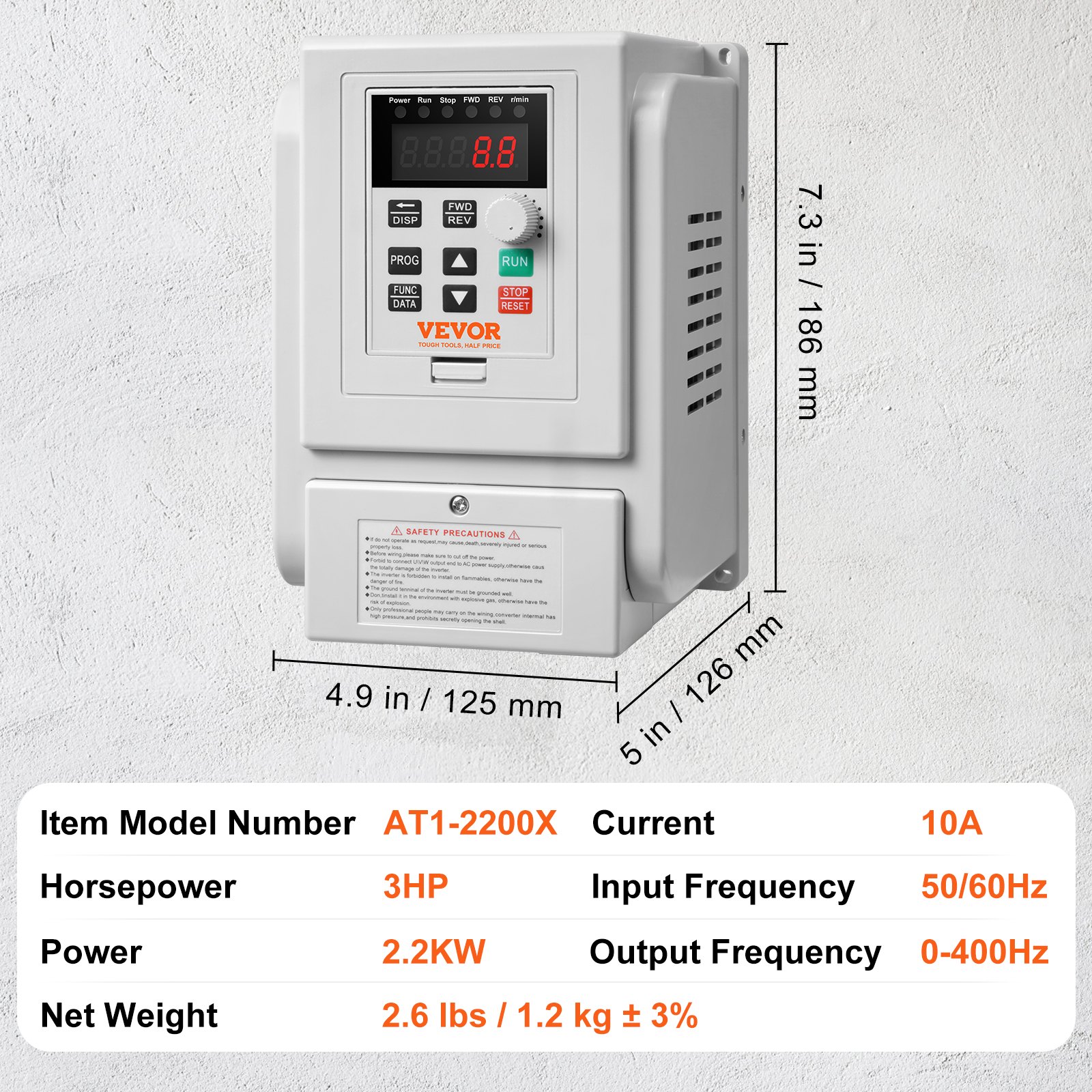

Product specification
- Item model number
- AT1-2200X
- Horsepower
- 3 hp
- Power
- 2.2 kW
- Current
- 10 A
- Input voltage
- AC 220–240 V, single-phase
- Output voltage
- AC 220–240 V, three-phase
- Input frequency
- 50 / 60 Hz
- Output frequency
- 0–400 Hz
- Operating temperature
- 10-40 °C (50-104 °F)
- Net weight
- 1.2 kg (2.6 lbs) ± 3%
Description

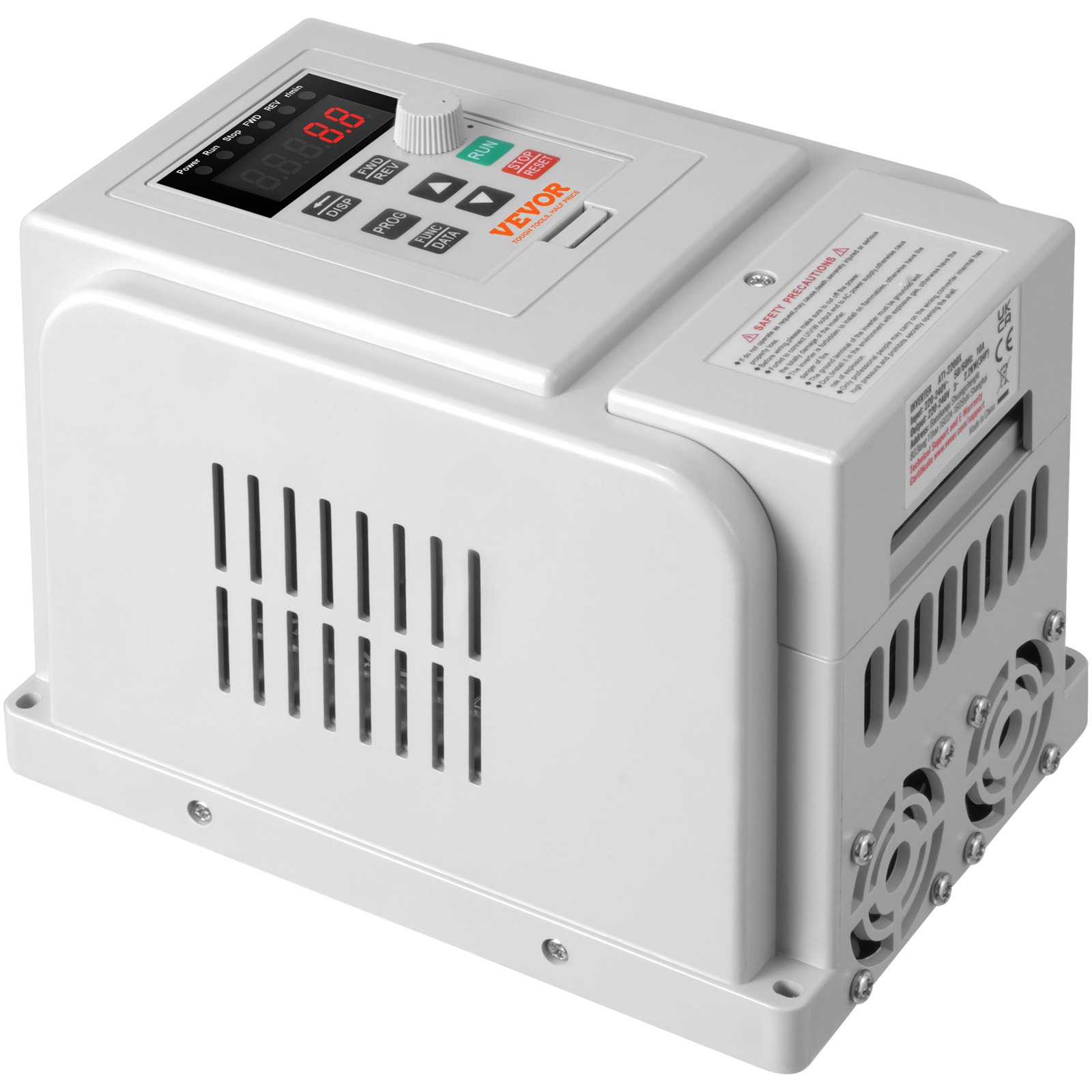

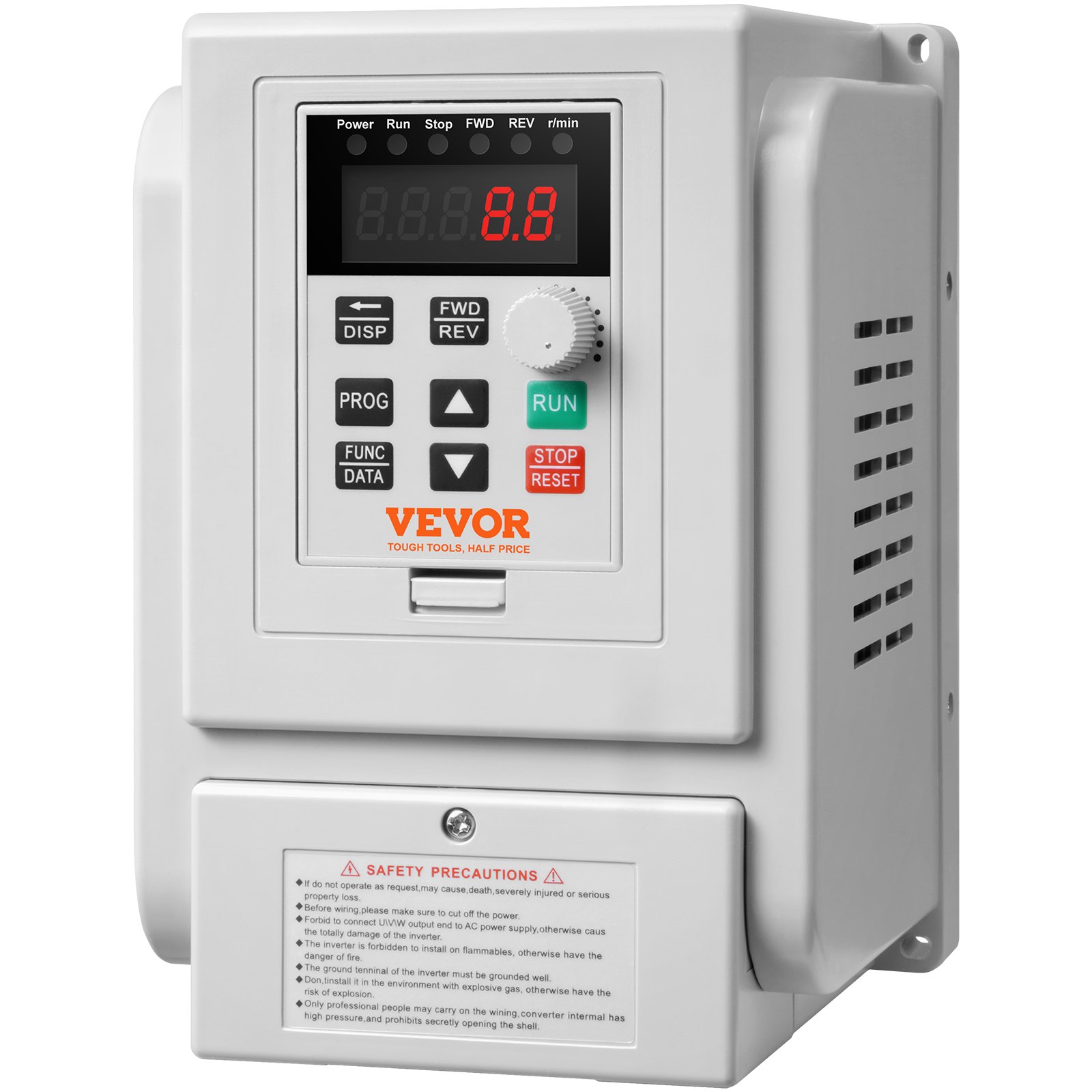

VEVOR 2.2 kW, 10 A, 3 HP frequency converter VFD
The VEVOR variable frequency drive (VFD) offers precise motor speed control through accurate frequency and amplitude of the motor drive current. With simple wiring, a user-friendly control panel, and smooth start/stop, it improves energy efficiency.

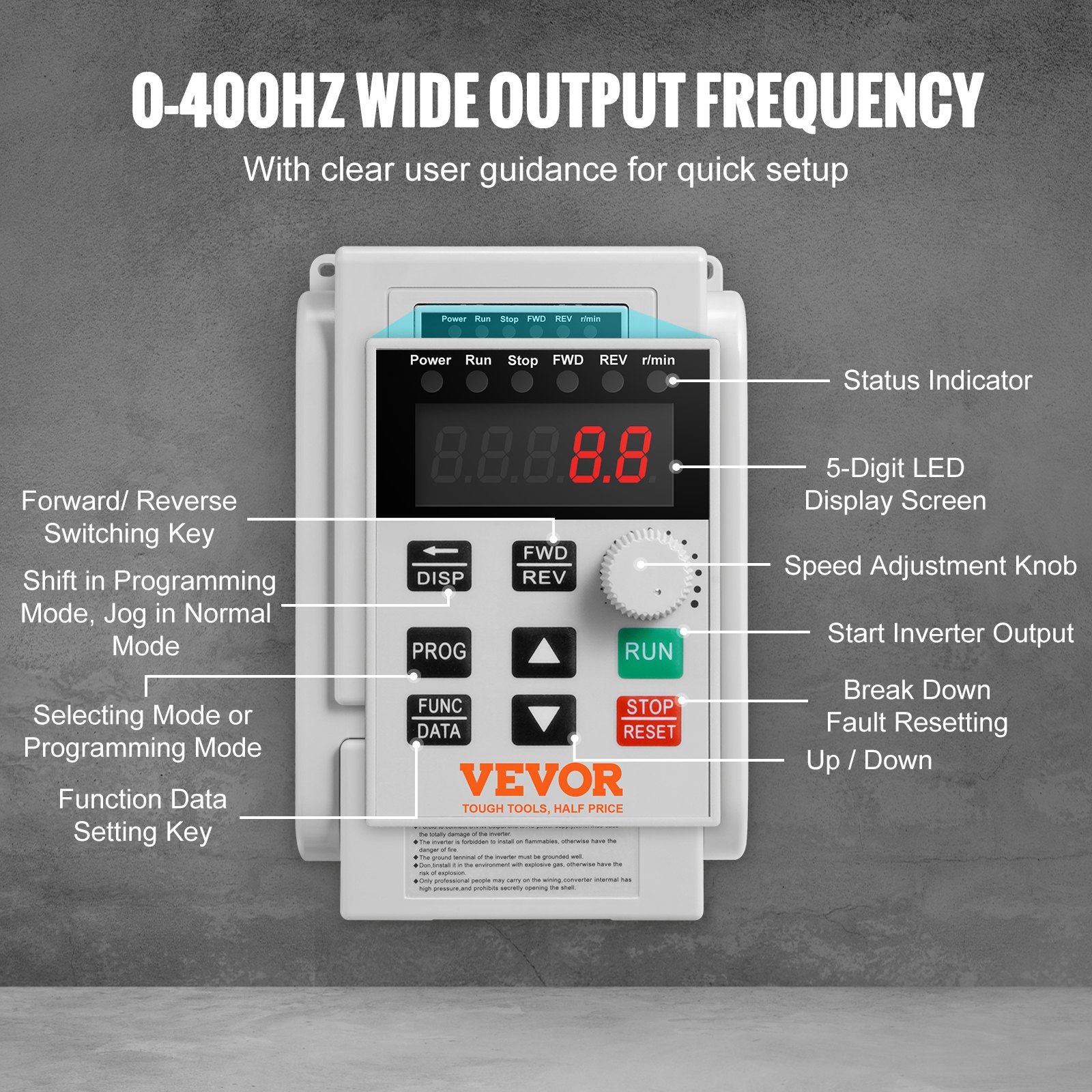

Operating Instructions: ① Press the programming button. ② Use the up/down and shift buttons to find parameters. ③ Press the function/save button to enter the setting. ④ Use the up/down and shift buttons to modify the settings. ⑤ Press the function/save button to save the settings. ⑥ Press the programming button to exit.

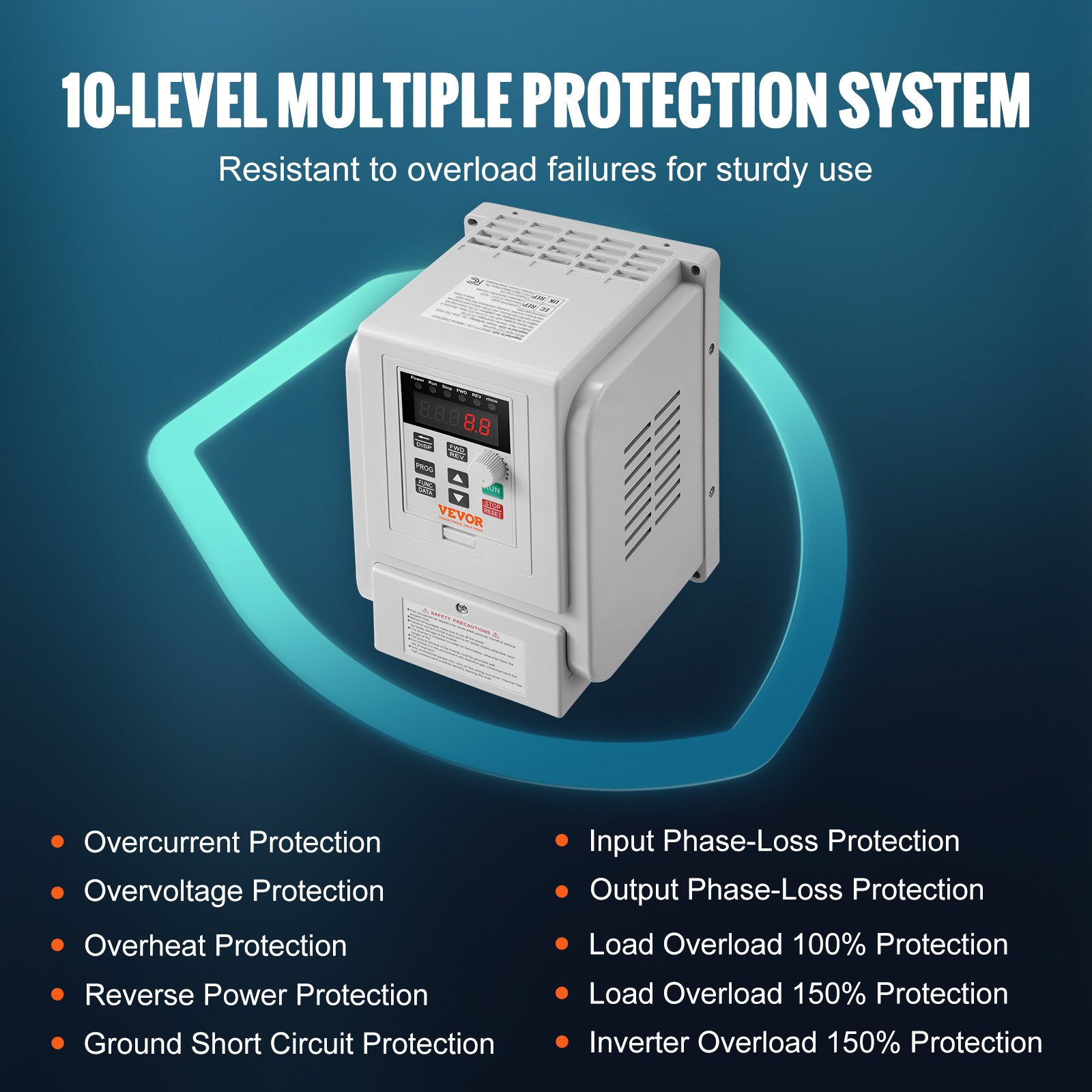

Equipped with a 10-stage intelligent protection system against overcurrent, overload, overvoltage and phase failure; the durable plastic housing ensures high performance and quality from the inside out, so you don't have to worry during operation.

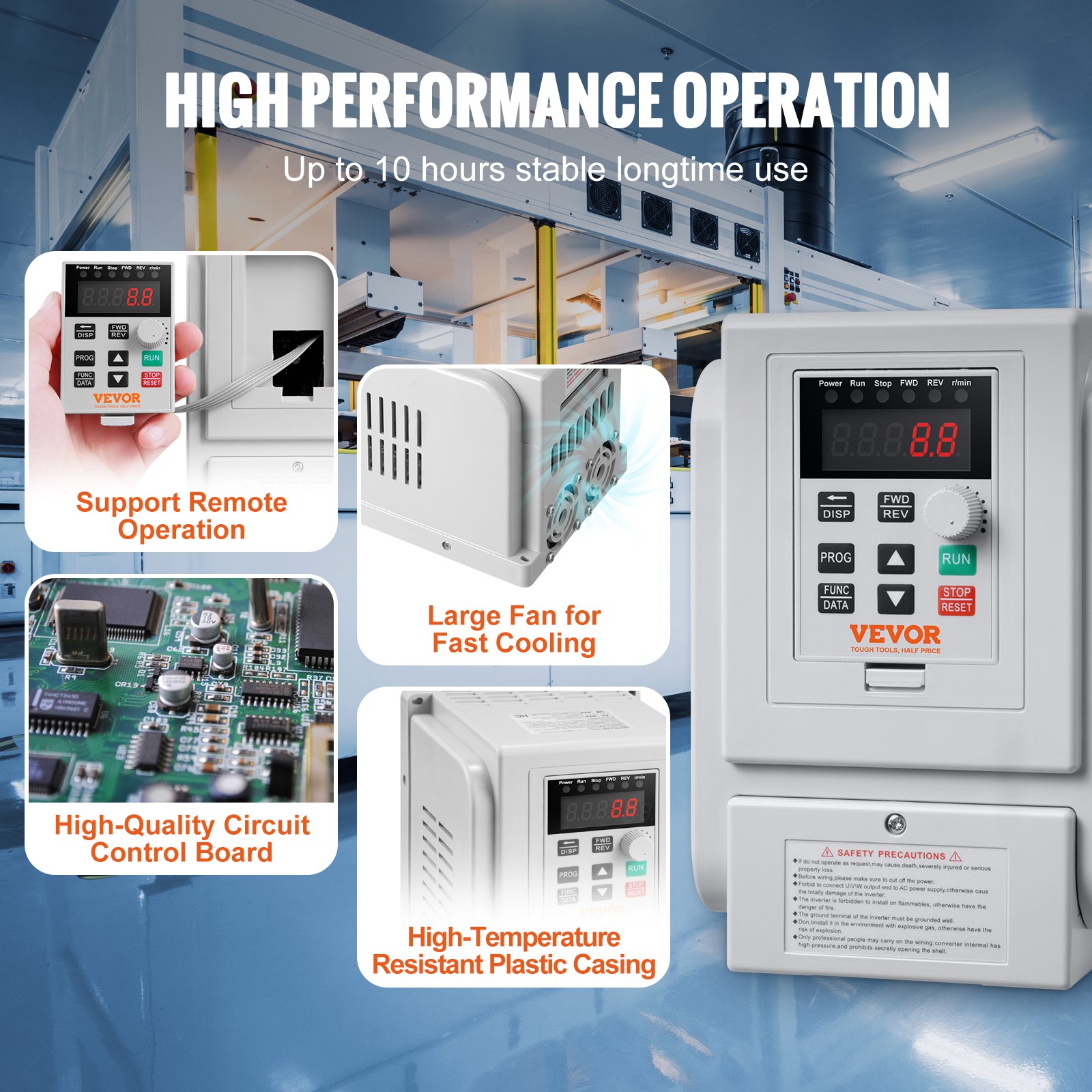

Large cooling fans and a multi-hole design ensure efficient operation and prevent overheating and overload during extended use. Tip: Position the device vertically for effective heat dissipation.

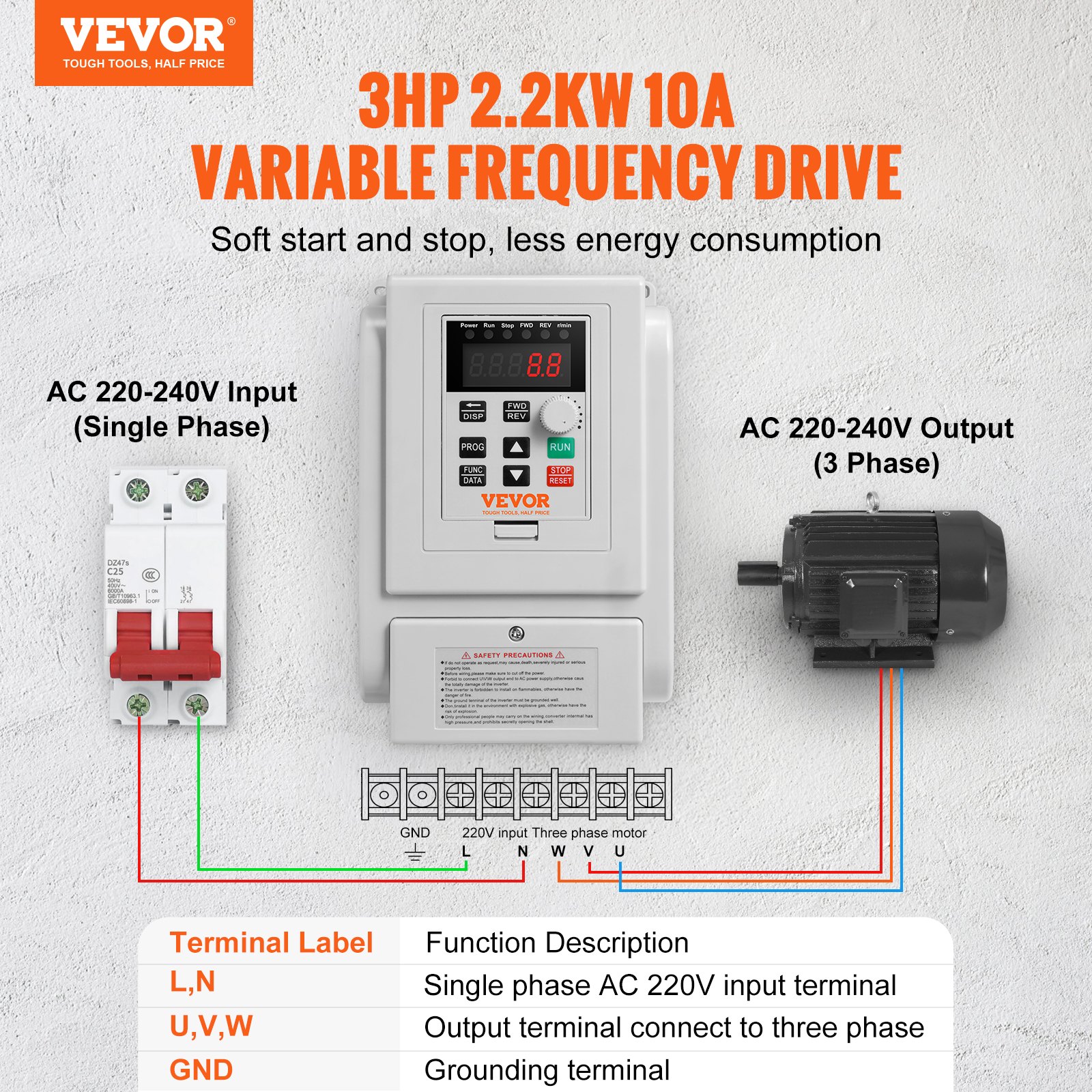

Tips: ① Turn off the power before connecting; never connect AC power to the motor output. ② To protect the VFD, press the red 'Stop' button and turn off the power when not in use. ③ Do not use an external braking resistor. ④ Do not install in humid environments or at high temperatures.
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (2)
jak zmniejszyc czas zmiany kierunku obrotow P0013nie reaguje.
Jeśli bezwładność obciążenia nie jest duża, po prostu zwiększ P034 i P042 produktu. Jeśli bezwładność obciążenia jest duża, należy zmodyfikować P012=2 i zwiększyć P013 i P014.
By vevor
Helpful
(
3
)
Czy ten falownik będzie pasował do tego wrzeciona ?
https://m.vevor.pl/silnik-wrzeciona-c_10130/wrzeciono-frezarskie-vevor-cnc-silnik-wrzeciona-chlodzony-powietrzem-przetwornica-czestotliwosci-2-2-kw-er20-vfd-p_010648959518
Tak, jest kompatybilny.
By vevor
Helpful
(
0
)
