Features & Details

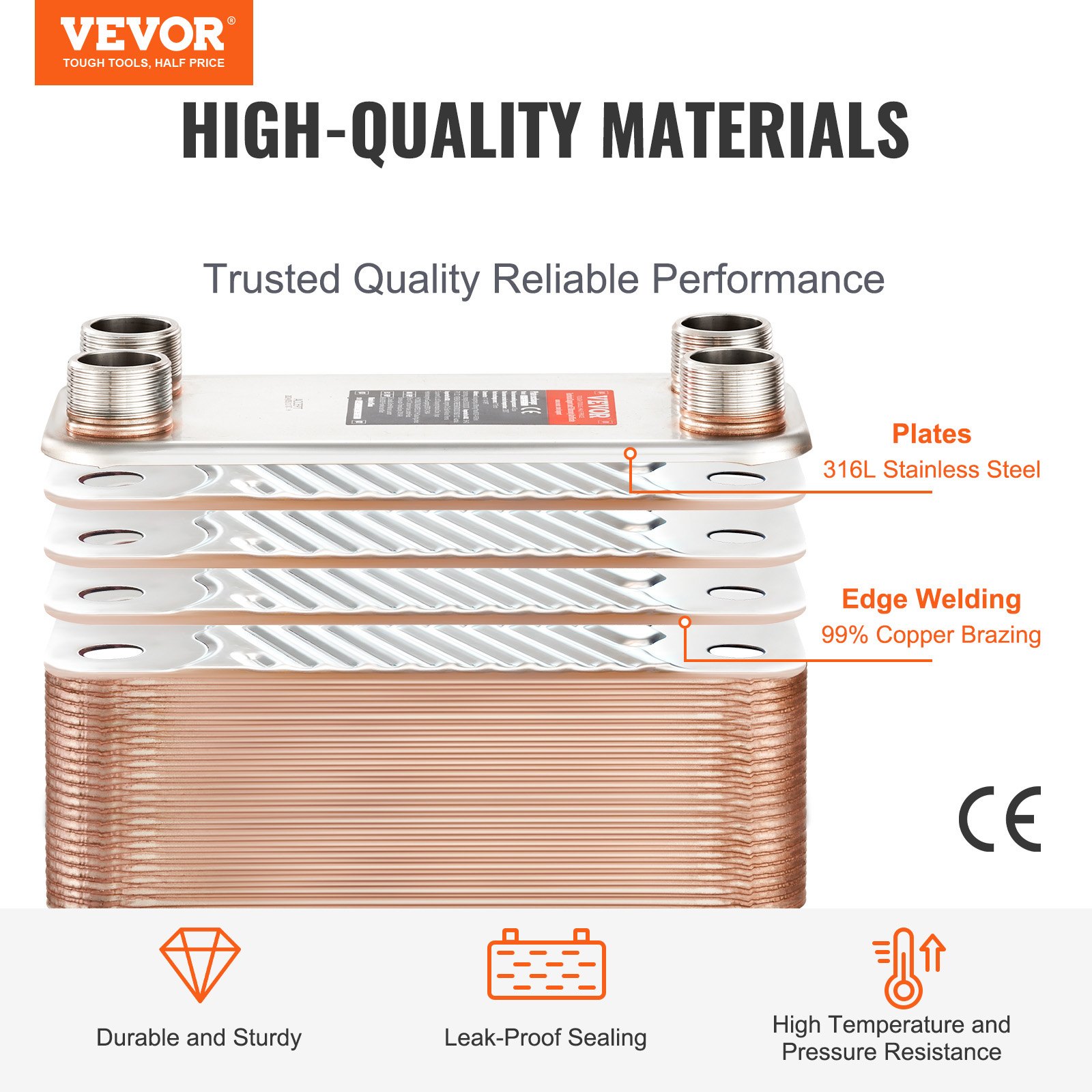

- High-quality materials: Made from 316L stainless steel with 99% copper brazing on edges and contact points, creating a robust and leak-proof unit that withstands high pressure and high temperatures. Caution: For use with media free of ammonia, chlorine, and deionized water.

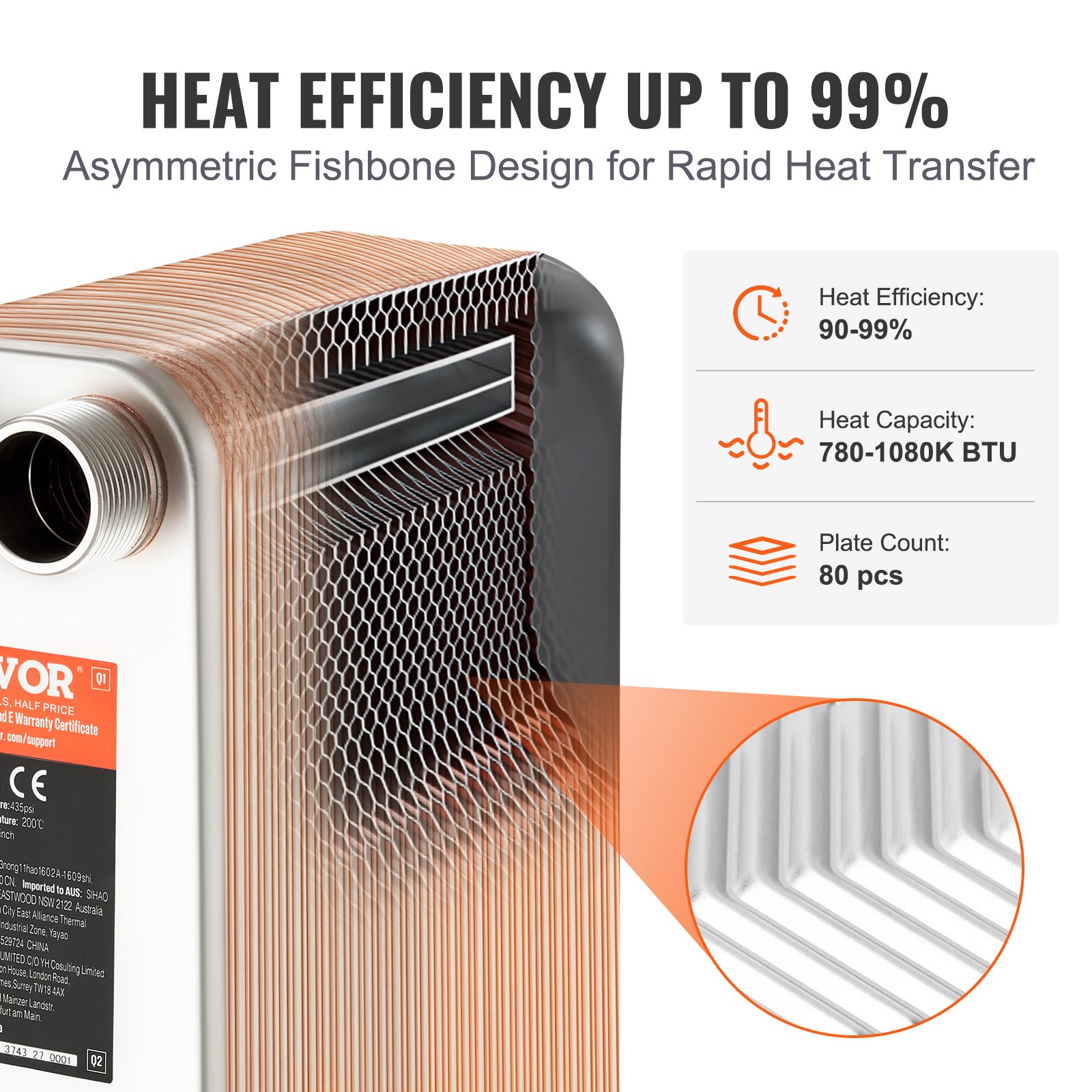

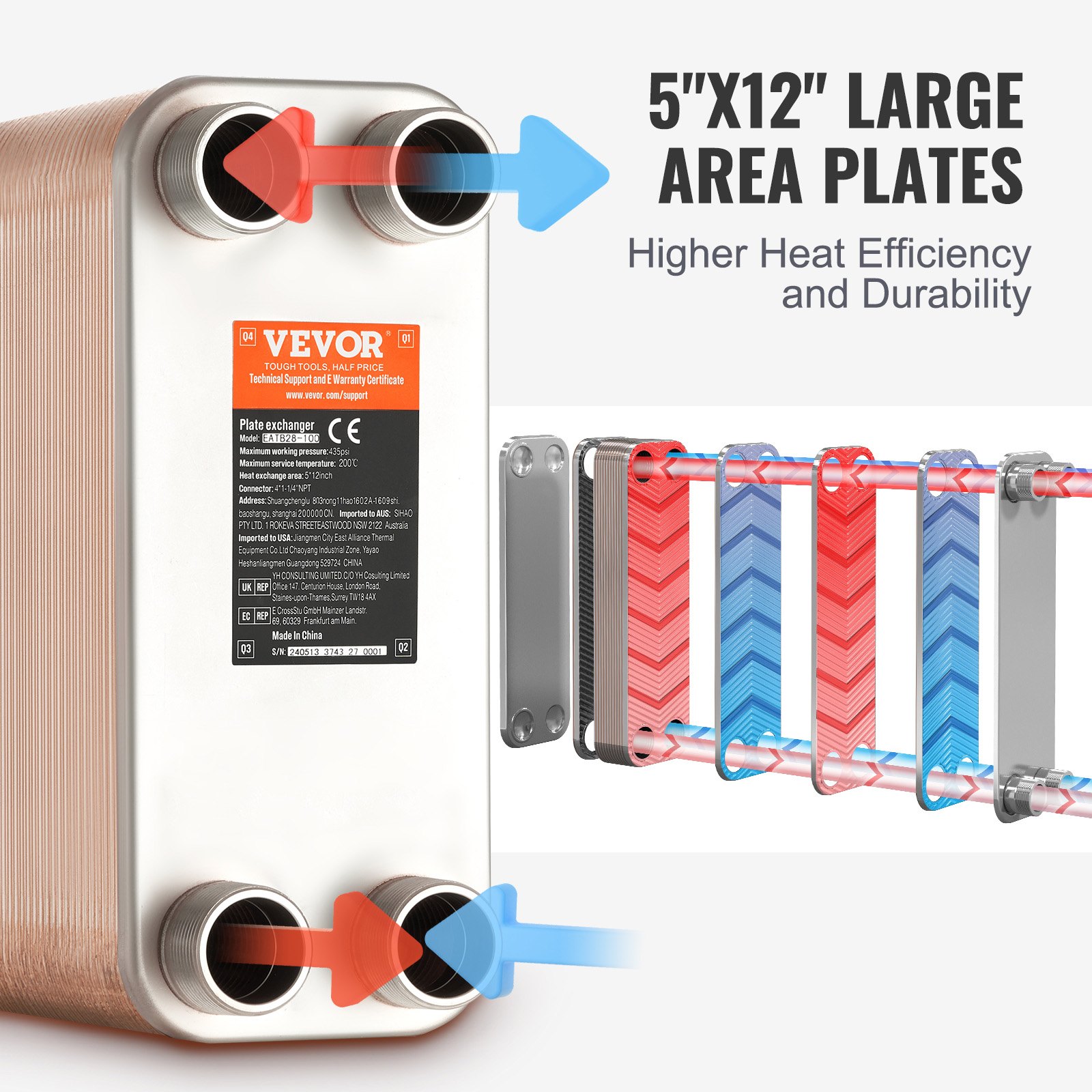

- Efficient heat transfer: The highly conductive stainless steel plates feature an asymmetrical herringbone pattern that generates intense pressure turbulence for efficient heating/cooling. With a thermal efficiency of up to 99%, 780–1080 K BTU per hour are generated, saving pump power and electricity, and reducing overall operating costs.
- Large heat exchange surface: The heat exchanger features 5 x 12-inch / 127 x 305 mm plates with up to 80 plates, providing excellent heat transfer performance for maximum efficiency. Suitable for operating temperatures from -292 °F to 392 °F.

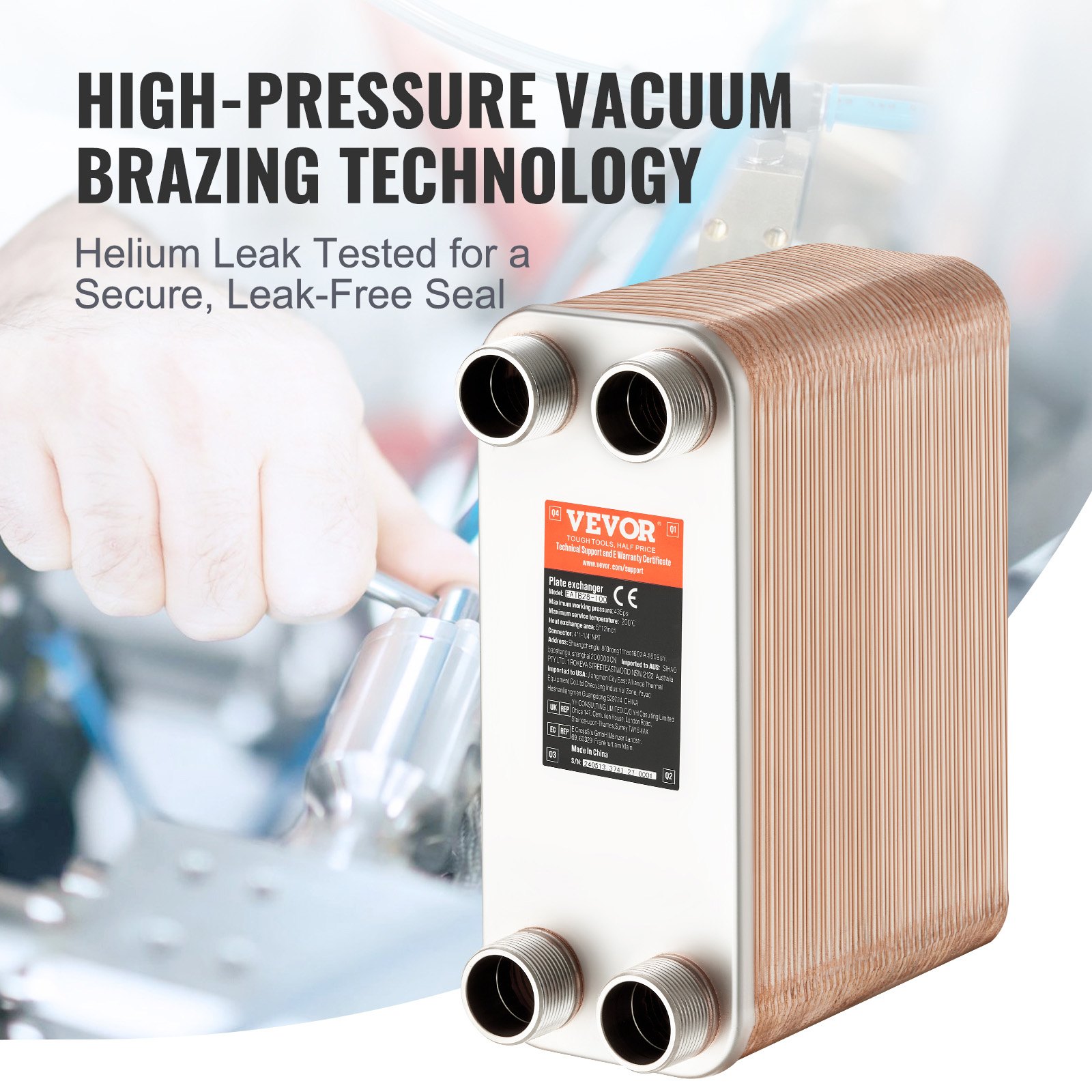

- Tight and leak-proof: To eliminate the possibility of micro-leaks, high-pressure vacuum brazing is used in the heat exchanger and a helium leak test is performed, which ensures a long service life and high reliability.

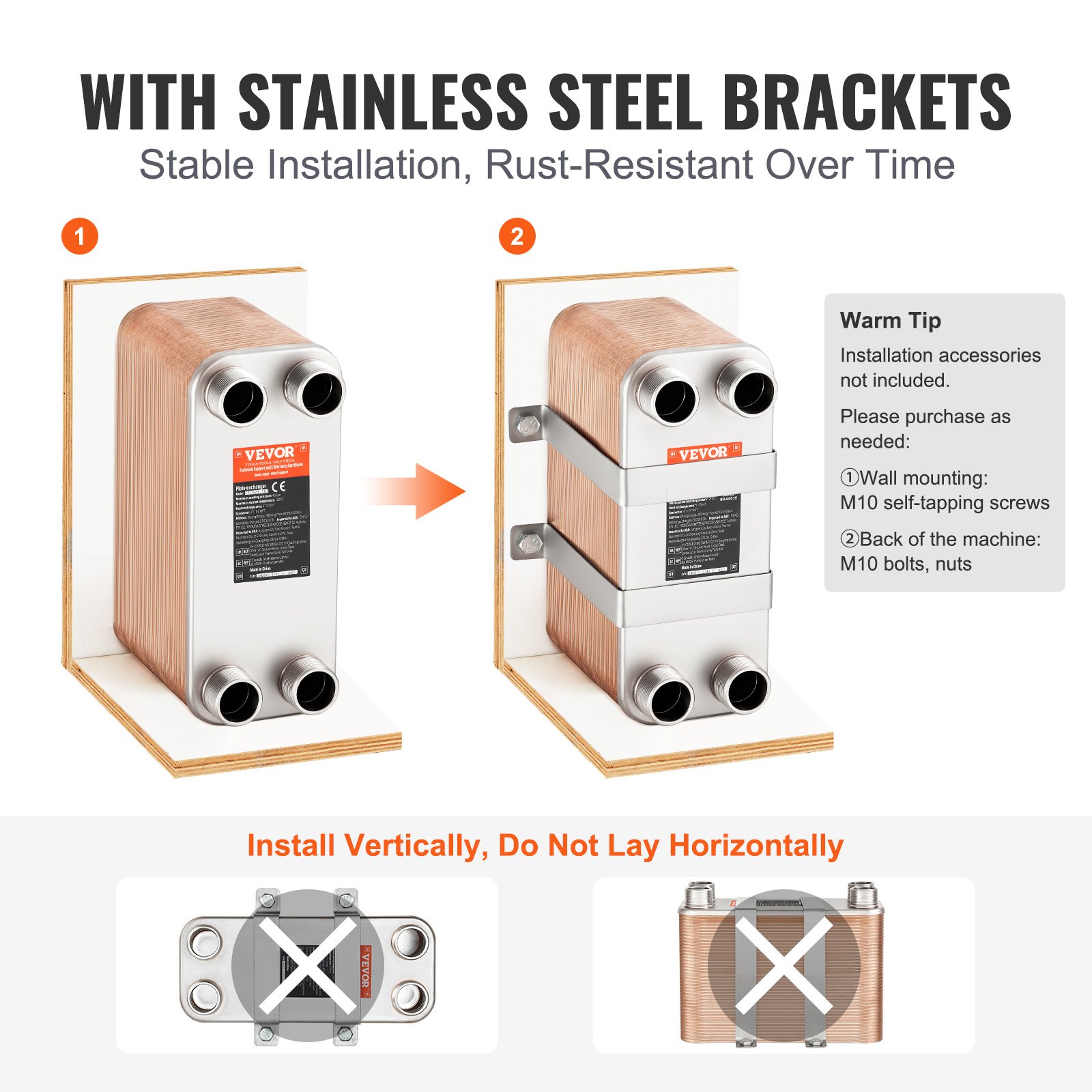

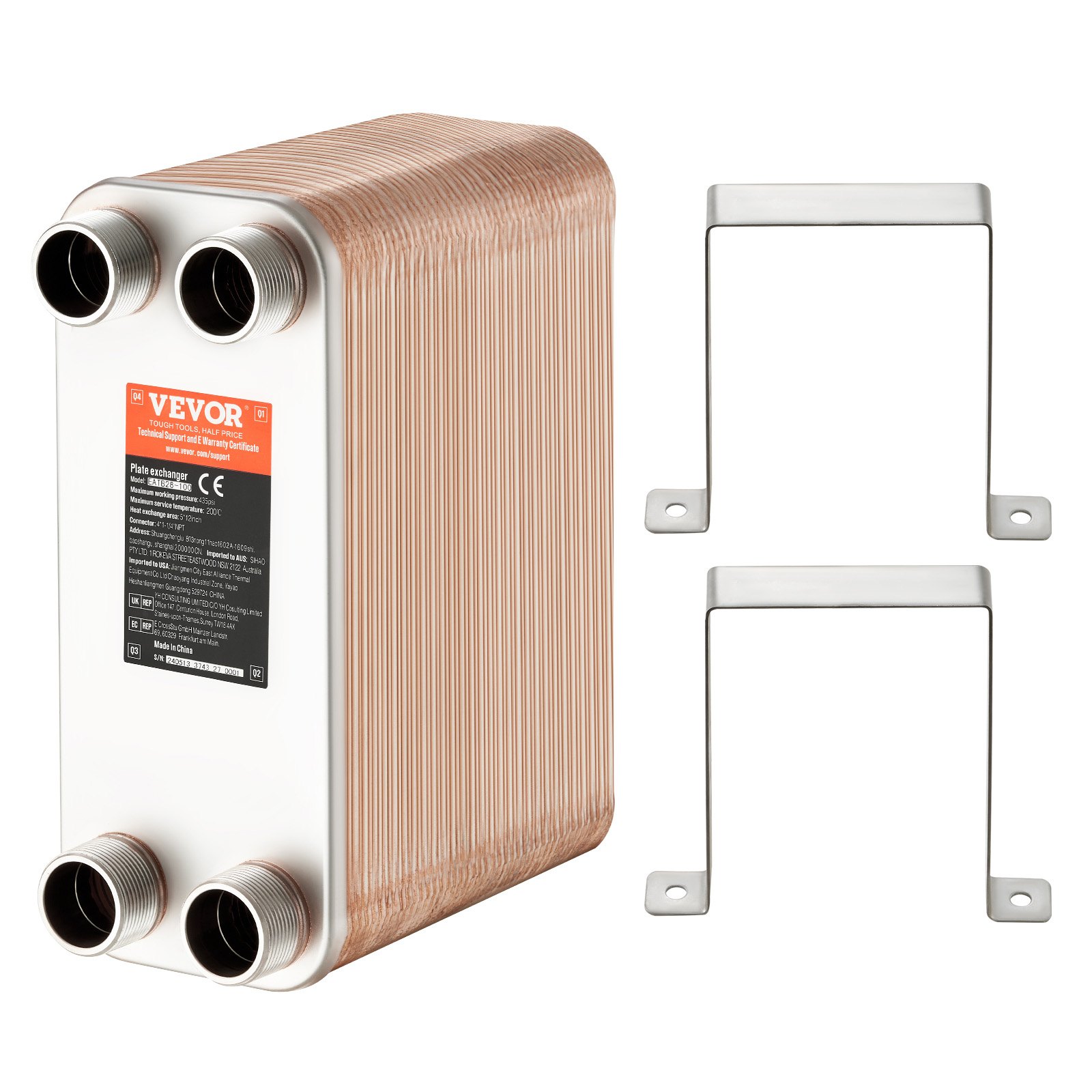

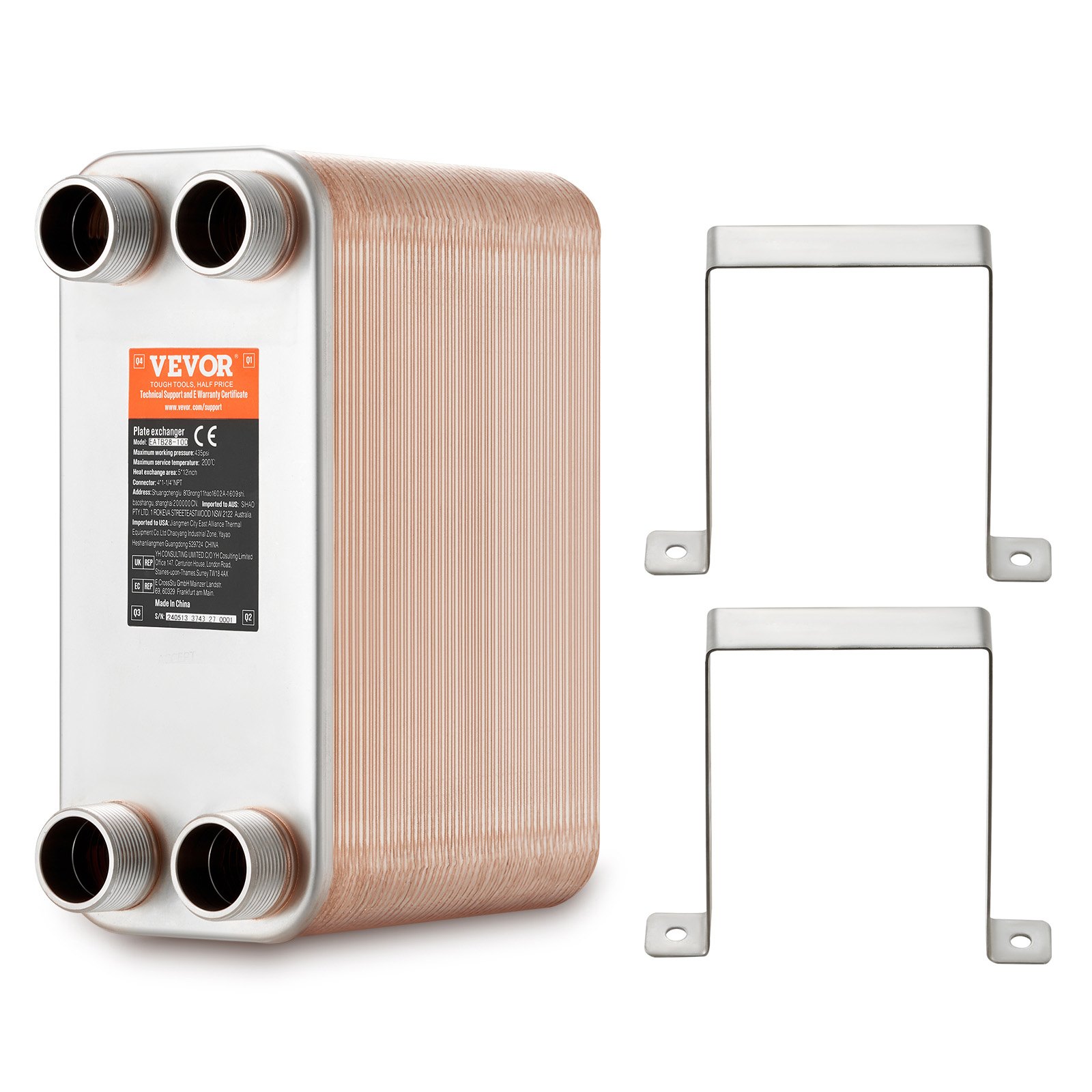

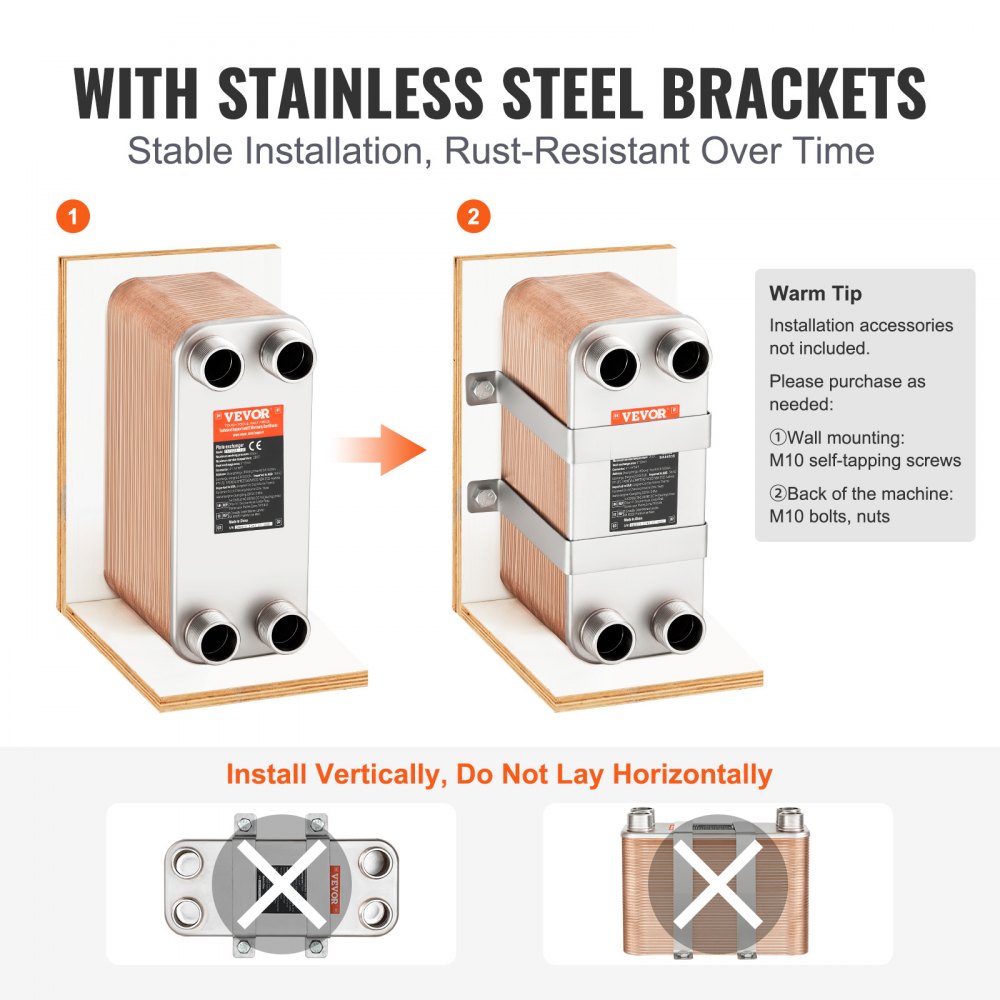

- Stable installation: Includes two stainless steel brackets made of 304 stainless steel, which offer excellent rust resistance and stability for easy and safe mounting of the heat exchanger.
Frequently Bought Together
Reviews 3.0
All reviews are from verified purchases
Average rating based on 1 reviews
Reviews 3.0
All reviews are from verified purchases
See all 1 reviews
About this item

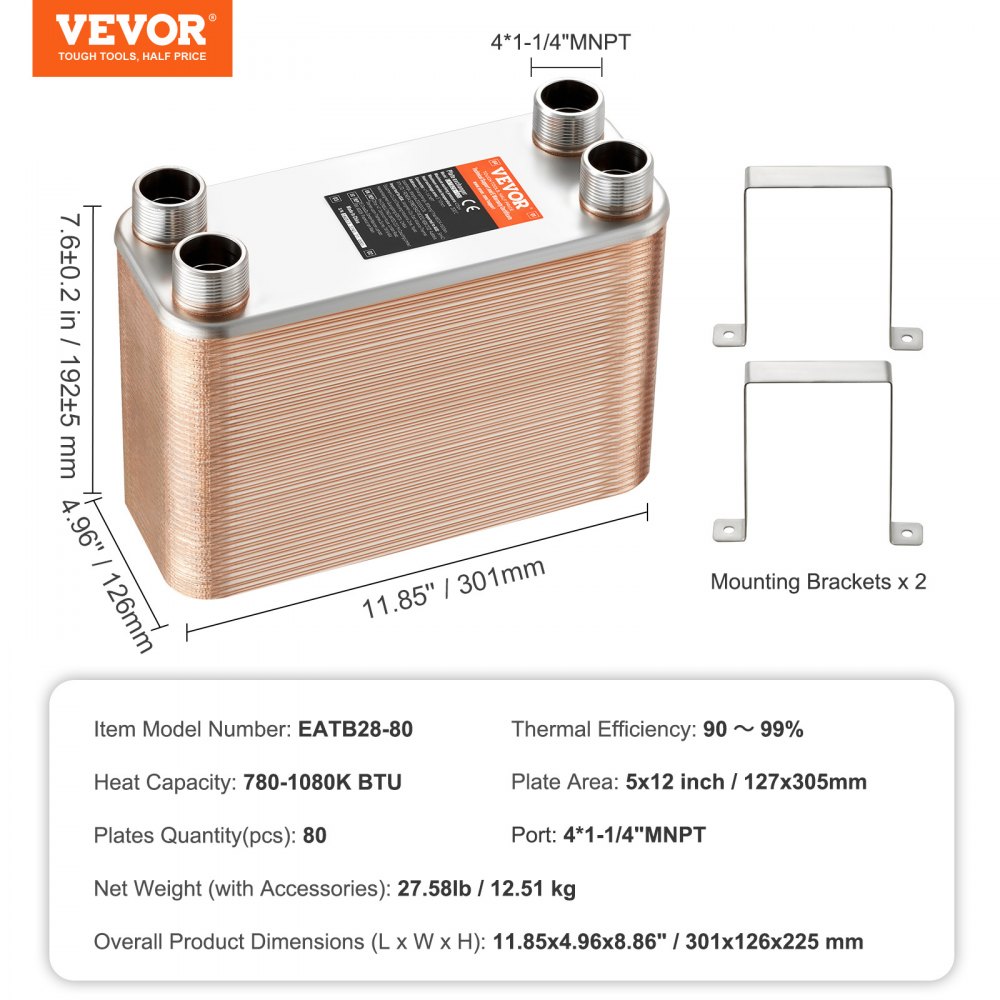

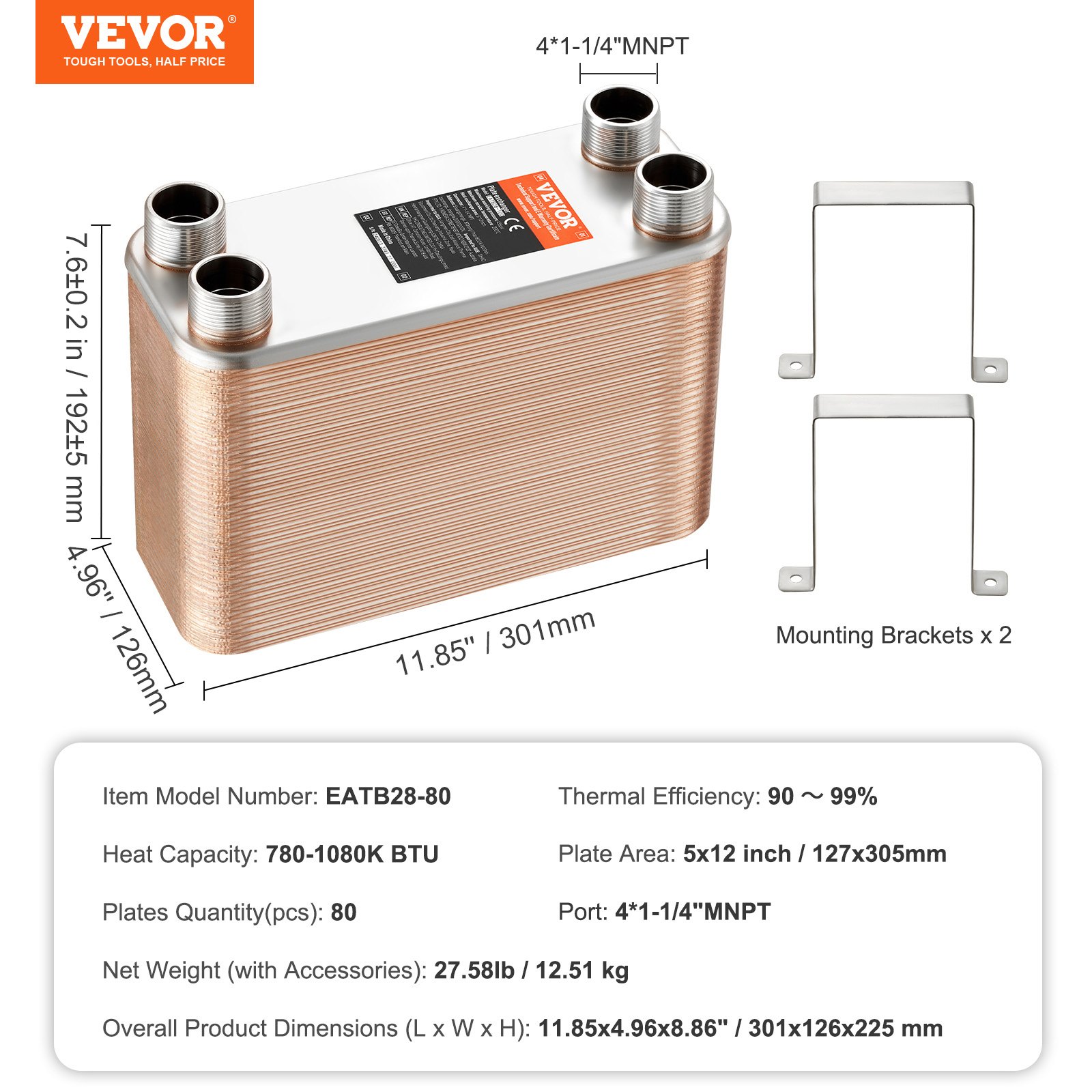

Product specification
- Item model number
- EATB28-80
- Thermal efficiency
- 90–99%
- Heat capacity
- 780–1080 K BTU
- Plate area
- 5 x 12 inches / 127 x 305 mm
- Quantity of plates (pieces)
- 80
- Connection
- 4 x 1-1/4 inch MNPT male thread
- Color
- Stainless steel + copper
- Material
- 304/316 stainless steel, solder
- Net weight (with accessories)
- 27.58 lbs / 12.51 kg
- Product dimensions (L x W x H)
- 11.85 x 4.96 x 8.86 inches / 301 x 126 x 225 mm
Description
Unleash ultimate thermal efficiency

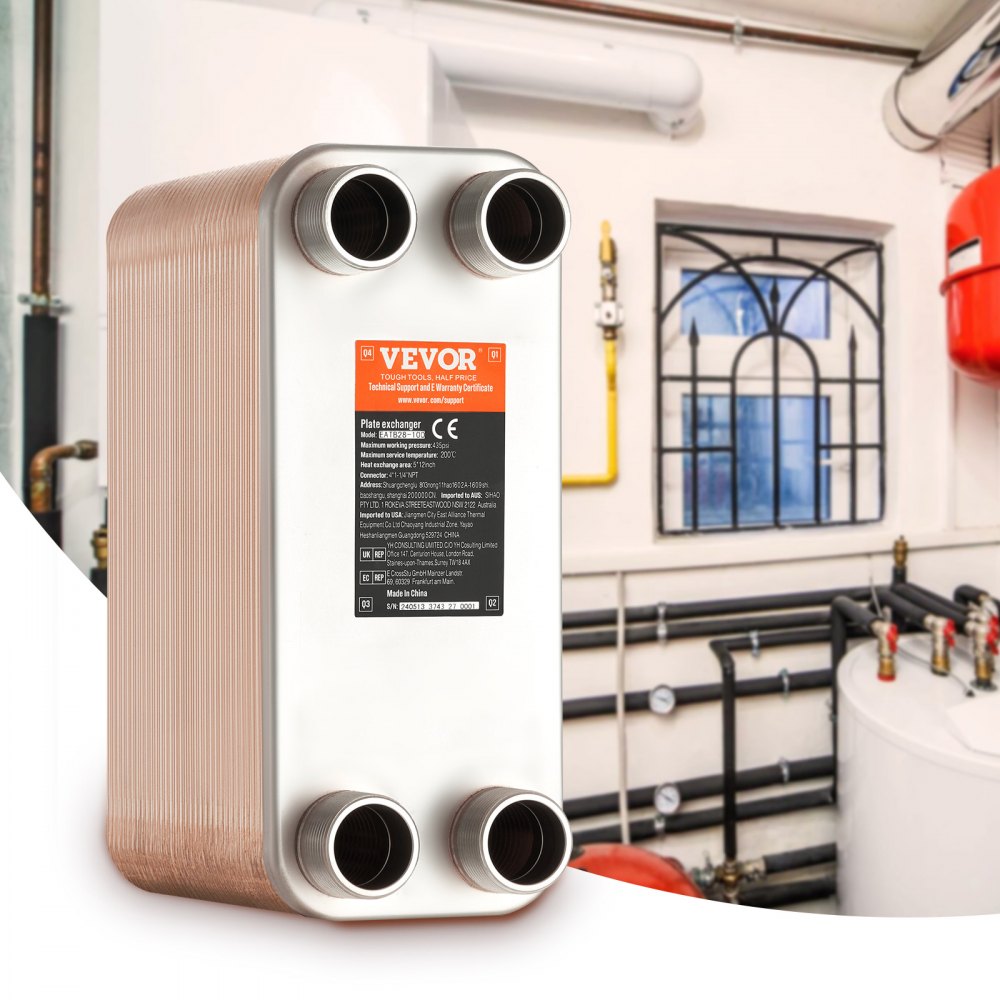

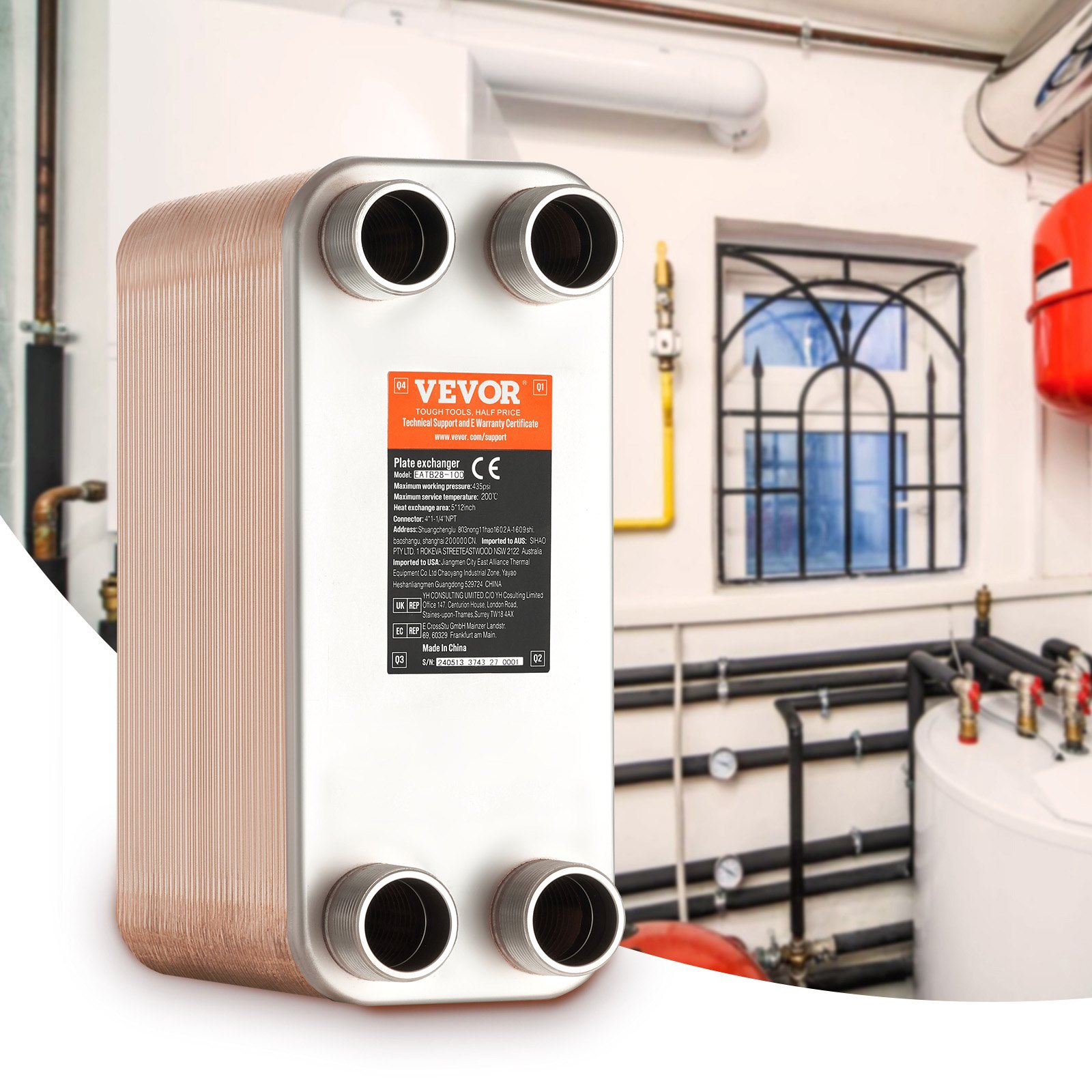

Our heat exchanger is compact and lightweight, yet offers excellent thermal performance. It is constructed from 316L stainless steel and features 99% copper brazing for long-lasting durability, making it ideal for solar heating, oil heat recovery, engine cooling, and condensation applications.
Our heat exchanger features a 1 1/4 inch MNPT interface with smooth threads for easy and convenient connection.
This heat exchanger heats liquids with irregular plates, requires neither electricity nor wood firing and provides hot water at low cost, making it cost-effective and practical.
Equipped with 4 interfaces, the heat exchanger meets different media requirements with the correct piping and operates in a temperature range from -292 °F to 392 °F.
To meet your requirements, our heat exchanger is available in 4 different sizes.
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (1)
Czy jest dostępny przyłącze 1"
Witam, ta płytka jest przystosowana do gwintu zewnętrznego 1-1/4 cala Jeśli chcesz ją zmienić na gwint 1 cal wystarczy skorzystać z przejściówki.
By vevor
Helpful
(
0
)
QHBSHRQ51280HRF9VV0
VEVOR heat exchanger, 127 x 305 mm, 80 plates, brazed plate heat exchanger, copper/316L stainless steel water-to-water heat exchanger for underfloor heating, hot water preparation, snow melting, beer cooling
