Features & Details

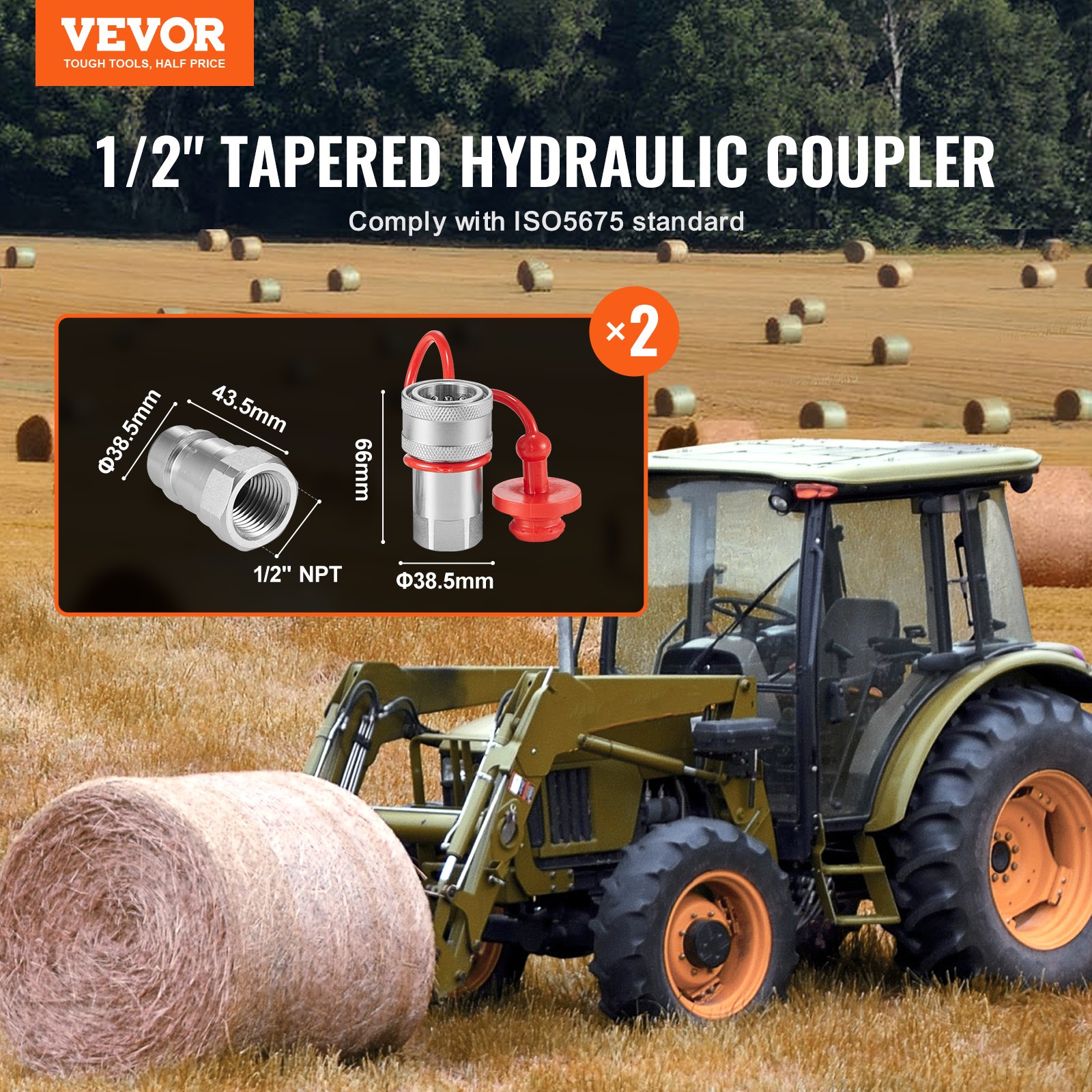

- Standards compliant: This hydraulic coupling has a 1/2 inch body size and a 1/2 inch NPT thread size for both the male and female couplings and complies with the ISO 5675 standard. This makes it ideal for connecting hydraulic lines.

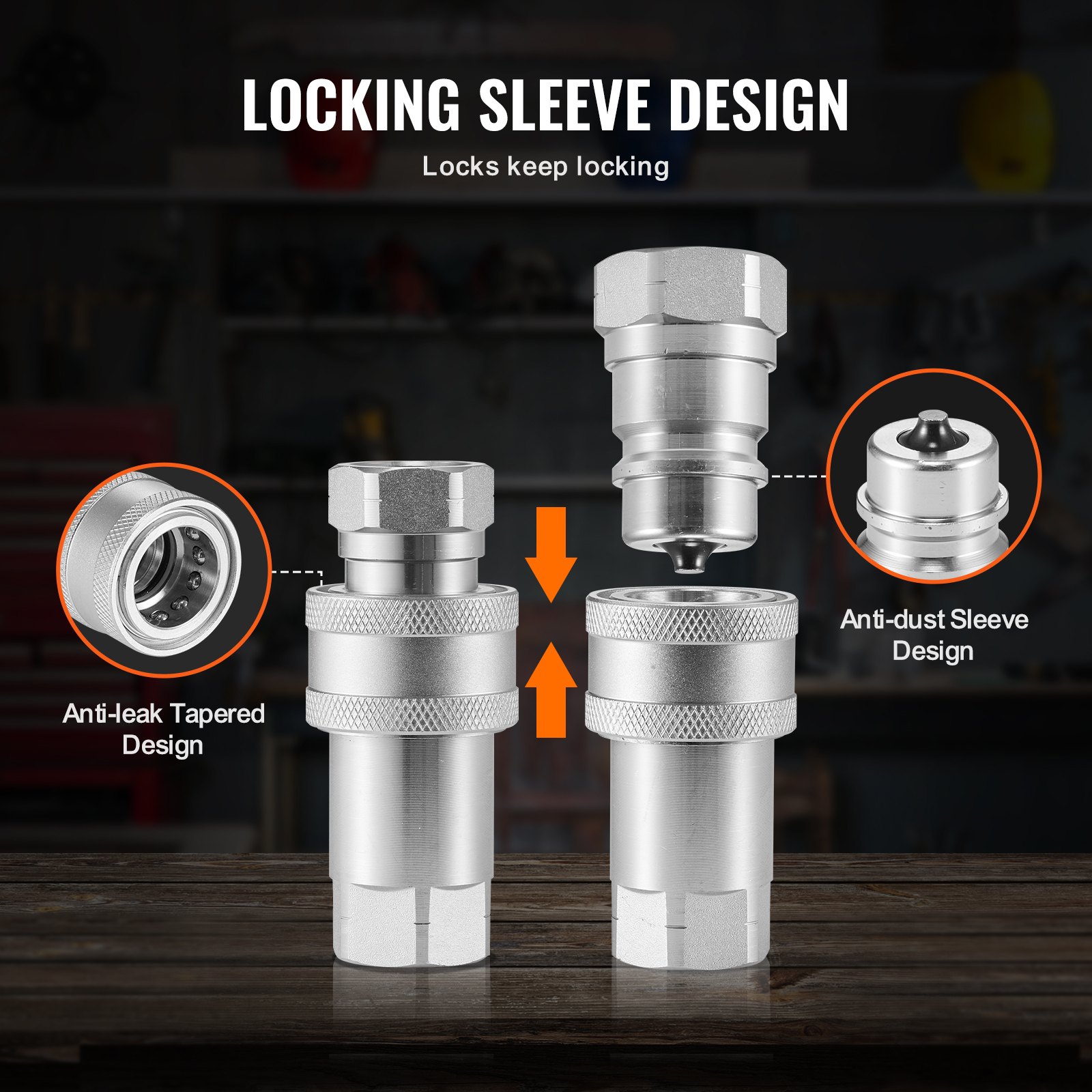

- Sleeve locking mechanism: The conical hydraulic couplings feature a sleeve locking mechanism that allows for easy coupling with just one push. The conical design of the coupling prevents leaks and keeps dust out of the hydraulic system during coupling and uncoupling.

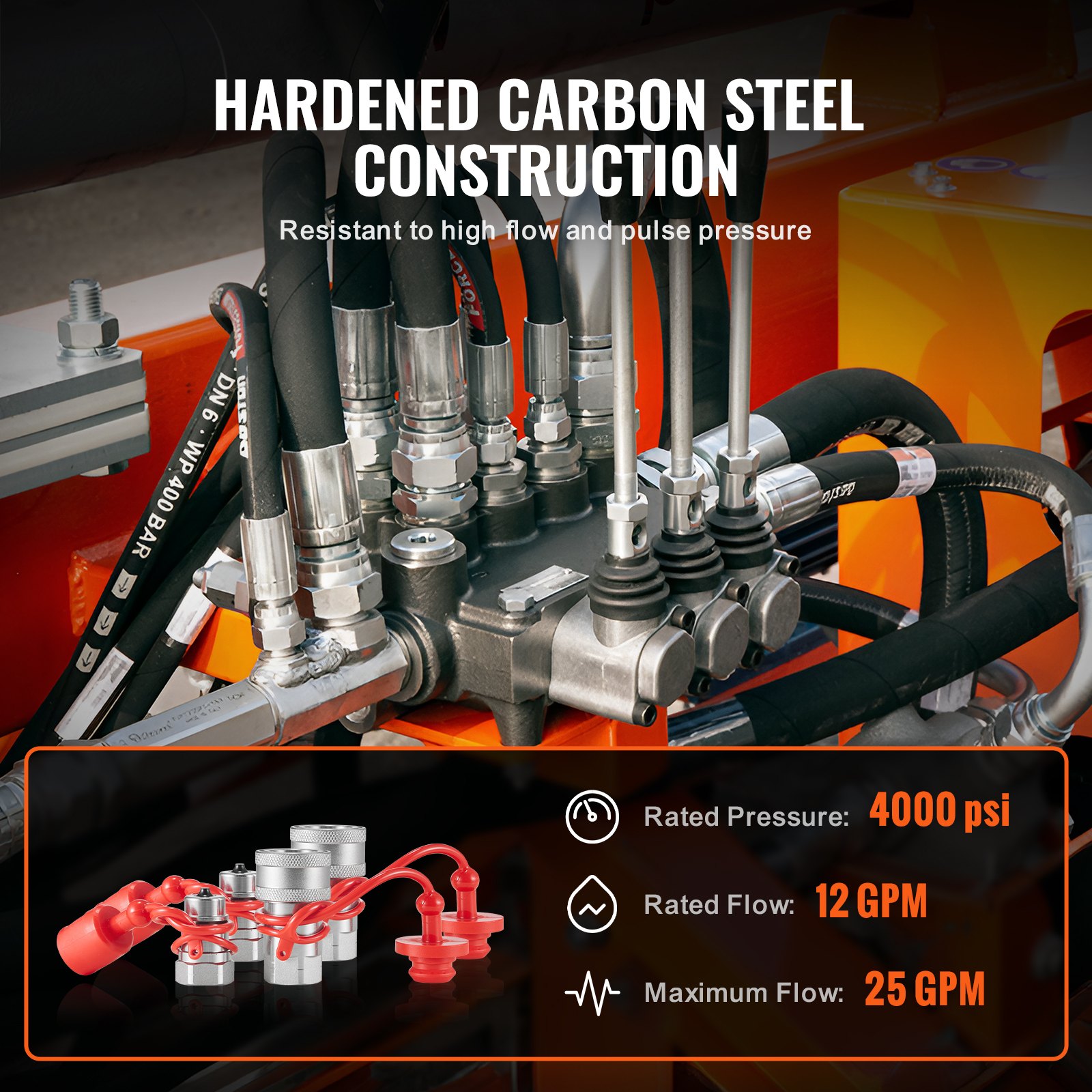

- Construction from hardened steel: The hydraulic quick couplings are made of hardened carbon steel and are designed for pressures up to 4000 PSI and a high flow rate of 25 GPM. This ensures durability for years of continuous use.

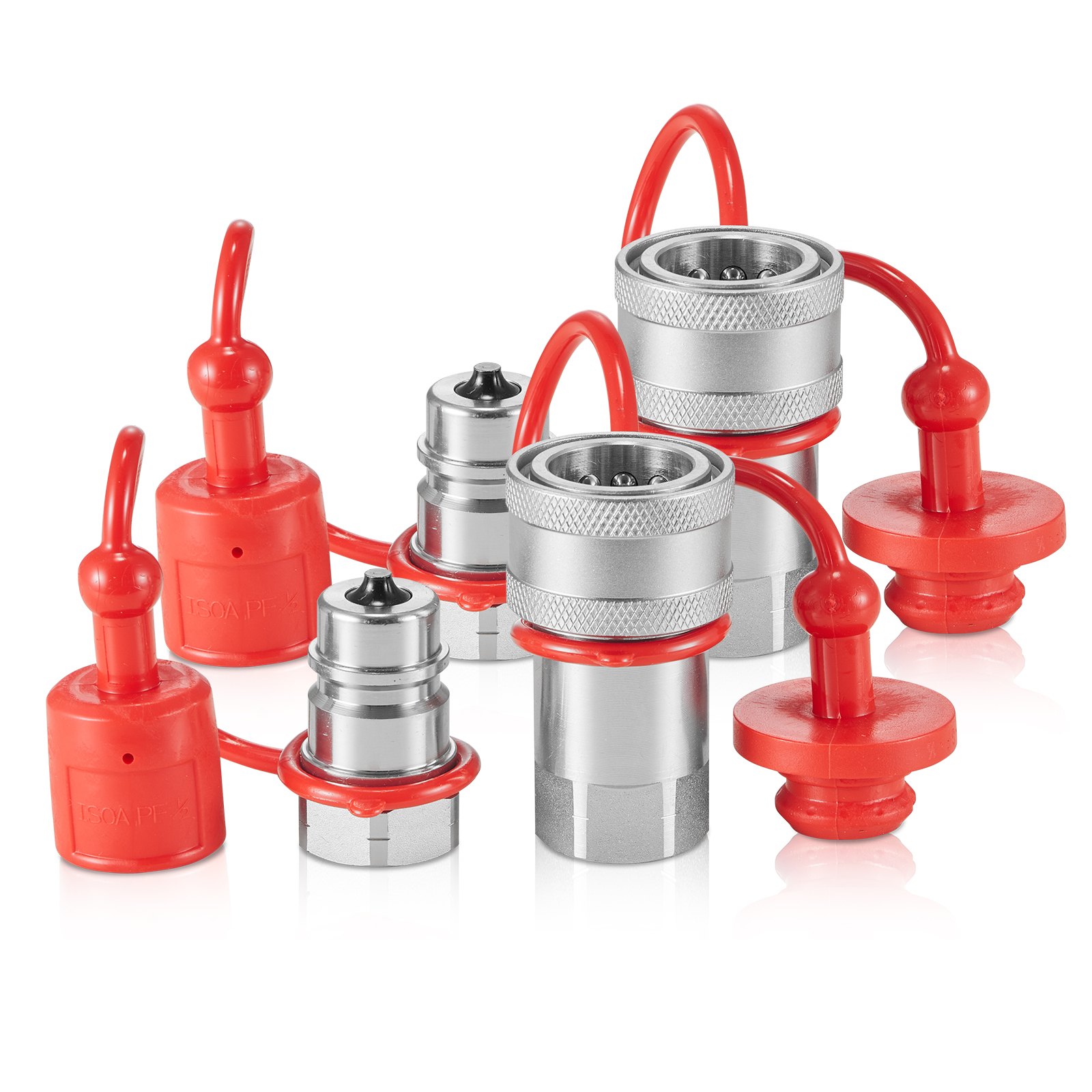

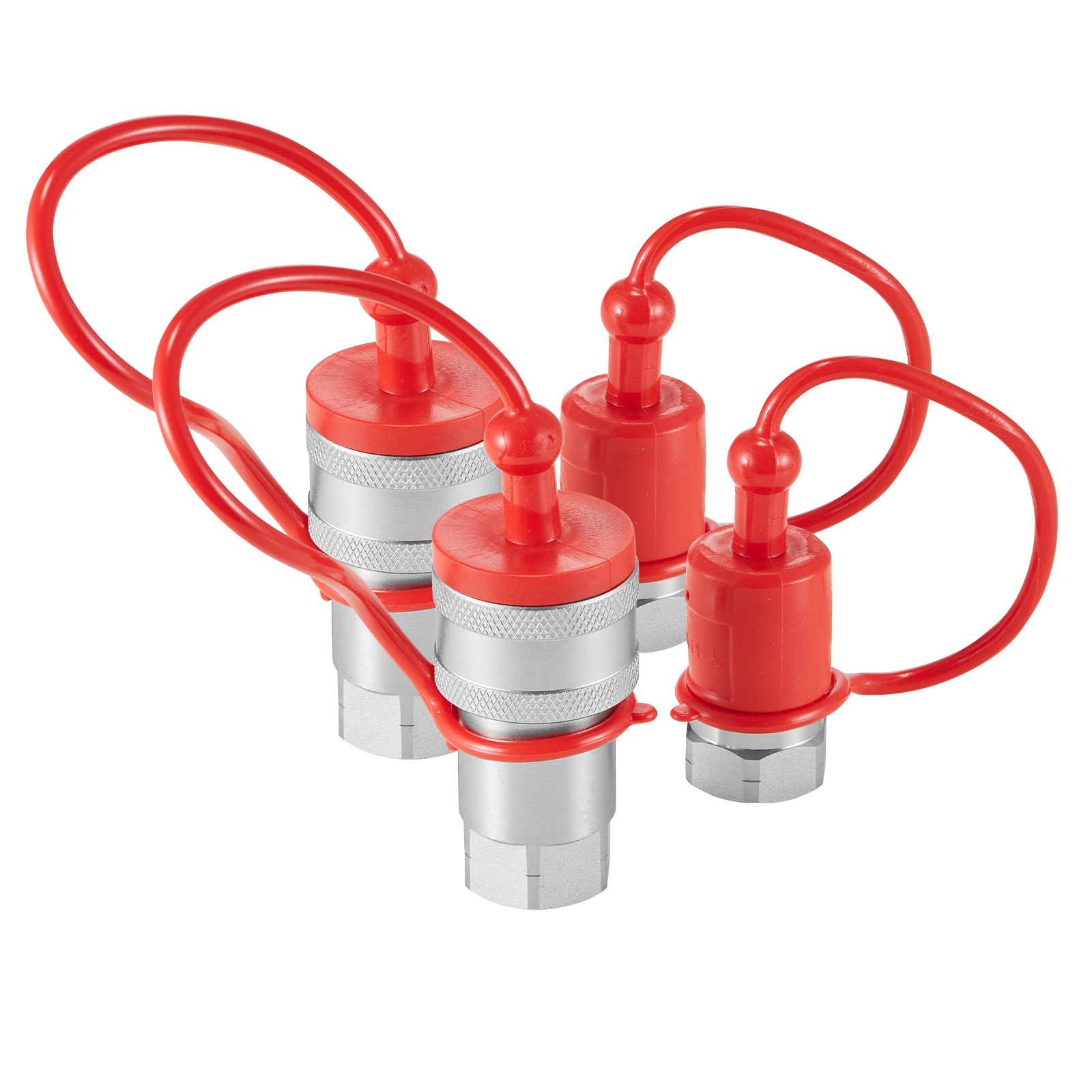

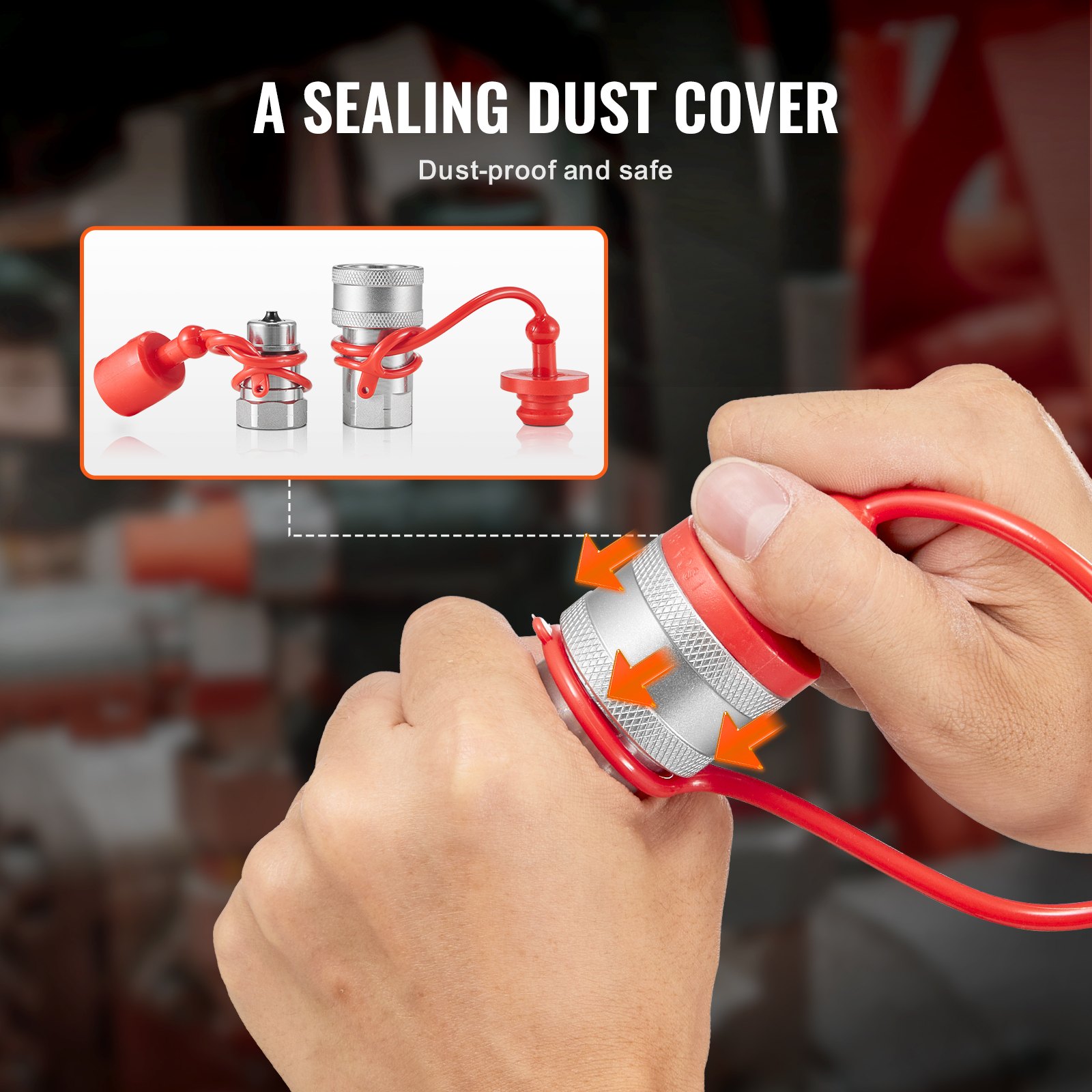

- Dust caps: Dust caps are included to prevent dirt from damaging the coupling system. This reduces the risk of failure and keeps the compact loader's hydraulic couplings clean when not in use. Internal dust caps also ensure that the coupling locking system functions smoothly and without interference.

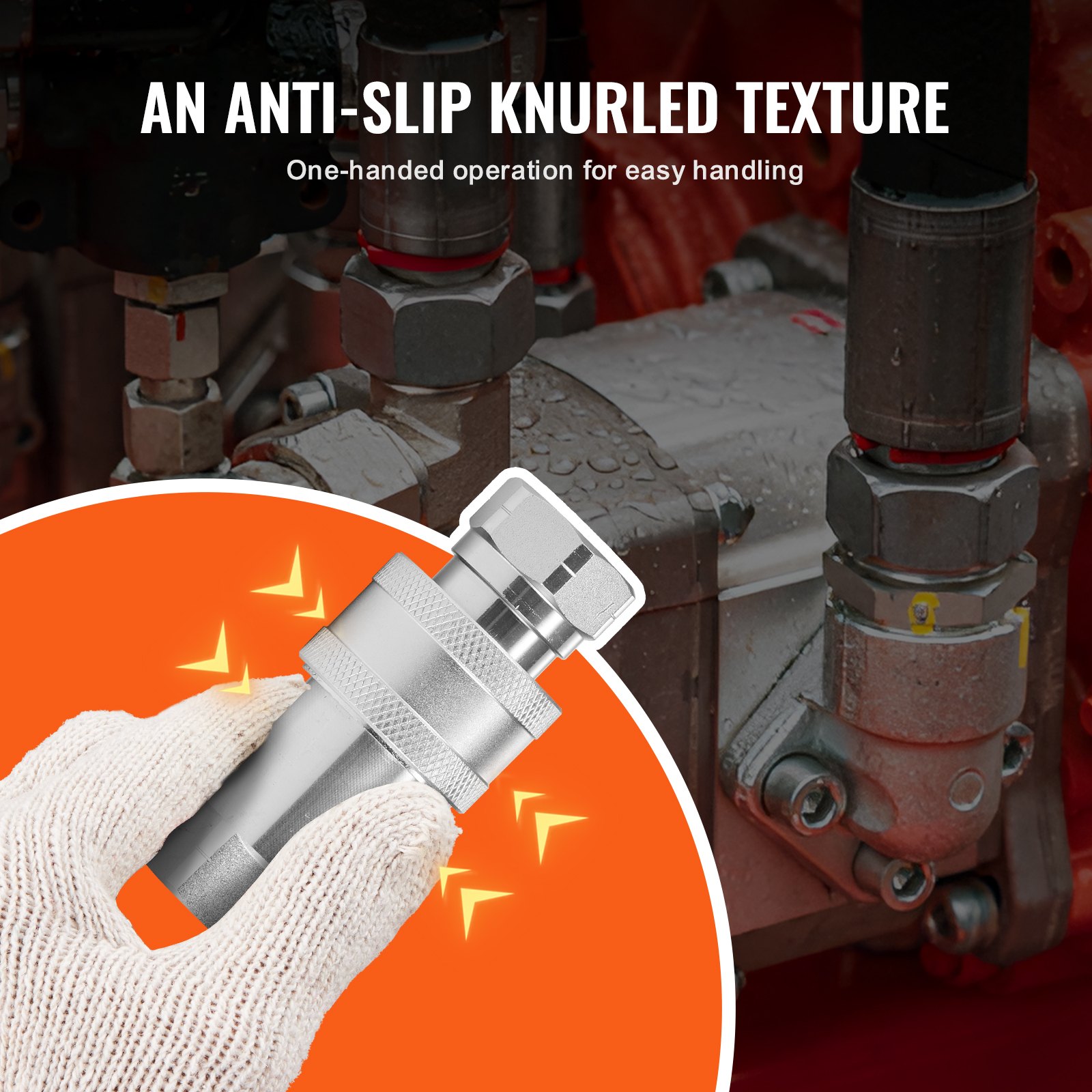

- Non-slip knurling: Robust knurled sleeves on the surface of the hydraulic valve ensure a non-slip grip. This valve design allows for minimal pressure drop and one-handed operation and is interchangeable with most compact loader types such as Bobcat, John Deere, CAT, Case/New Holland, Kubota, etc.
Frequently Bought Together
Reviews 0.0
All reviews are from verified purchases
Average rating based on 0 reviews
Reviews 0.0
All reviews are from verified purchases
See all 0 reviews
About this item

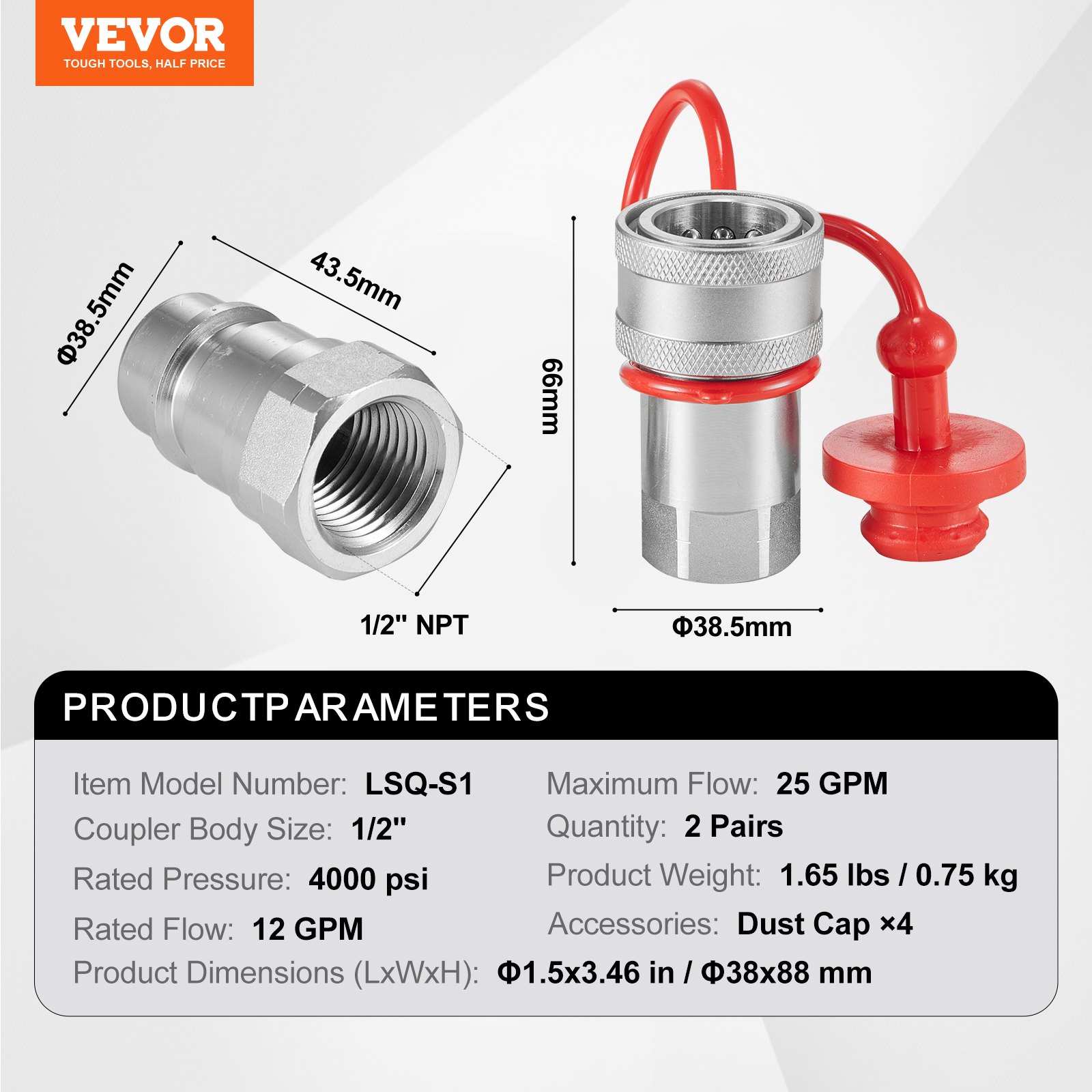

Product specification
- Article model number
- LSQ-S1
- Coupling type
- Conical hydraulic coupling
- Standard
- ISO5675
- Clutch body size
- 1/2 inch
- Nominal pressure
- 4000 psi
- Nominal flow rate
- 12 GPM
- Maximum flow rate
- 25 GPM
- Quantity
- 2 pairs
- Thread size of the male coupling
- 1/2 inch NPT (female thread)
- Thread size of the internal coupling
- 1/2 inch NPT (internal thread)
- Configuration
- Dust caps
- Color
- White
- Main material
- 45# carbon steel.
- Male coupling
- Φ38.5 x 43.5 mm (OD x L), 45# carbon steel, chrome-plated
- Bushing coupling
- Φ38.5 x 66 mm (outer diameter x length), 45# carbon steel, chrome-plated
- Dust cap
- Φ38 x 298 mm (OD x L), rubber, red
- Product weight
- 1.65 lbs / 0.75 kg
- Product dimensions (L x W x H)
- Φ1.5 x 3.46 inches / Φ38 x 88 mm
Description

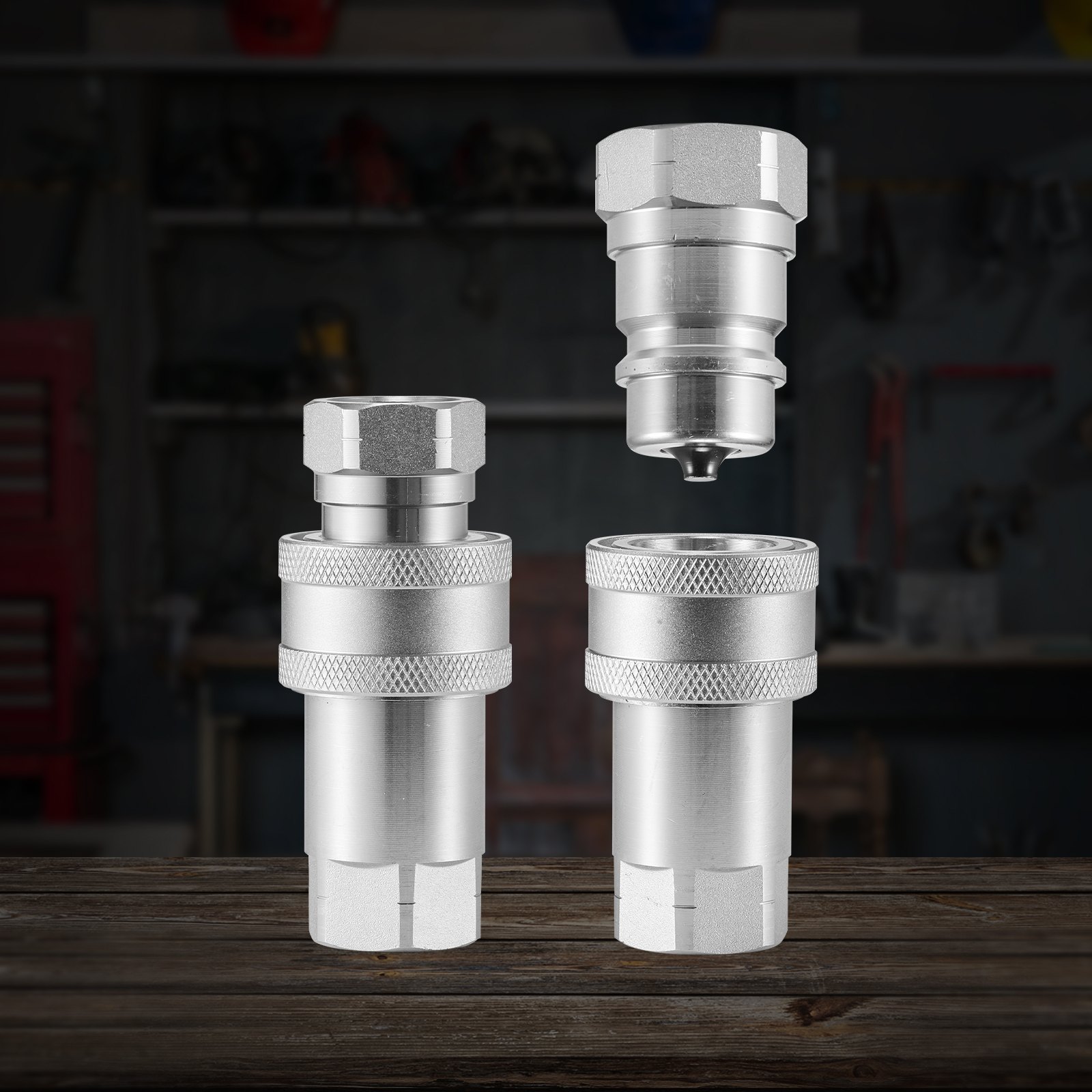

VEVOR 1/2 inch tapered hydraulic couplings
Our hydraulic couplings have passed impact, high-pressure, and high-temperature tests to ensure compliance with ISO 5675 standards. Our commitment to high quality makes our product a smart choice for you.
The conical hydraulic couplings feature a 1/2 inch NPT thread and a newly improved valve design that provides a high flow rate of 25 GPM at a nominal pressure of 4000 PSI, significantly extending service life.
Our hydraulic couplings for compact loaders are made of high-quality carbon steel and galvanized to ensure high rust and corrosion resistance as well as a long service life.
The sleeve locking mechanism of the hydraulic quick couplings allows for easy coupling by pushing. The rotating sleeve locks securely and prevents unintentional uncoupling. To disconnect, the tip is pointed at the gap and pulled.
The hydraulic couplings were developed for applications where hydraulic leaks may occur. They are interchangeable with most compact loader types and are suitable for agriculture, construction, forestry, etc.
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (0)
Typical questions asked about products: Is the product durable? ...
YYKSJT2DISO50O4VEV0

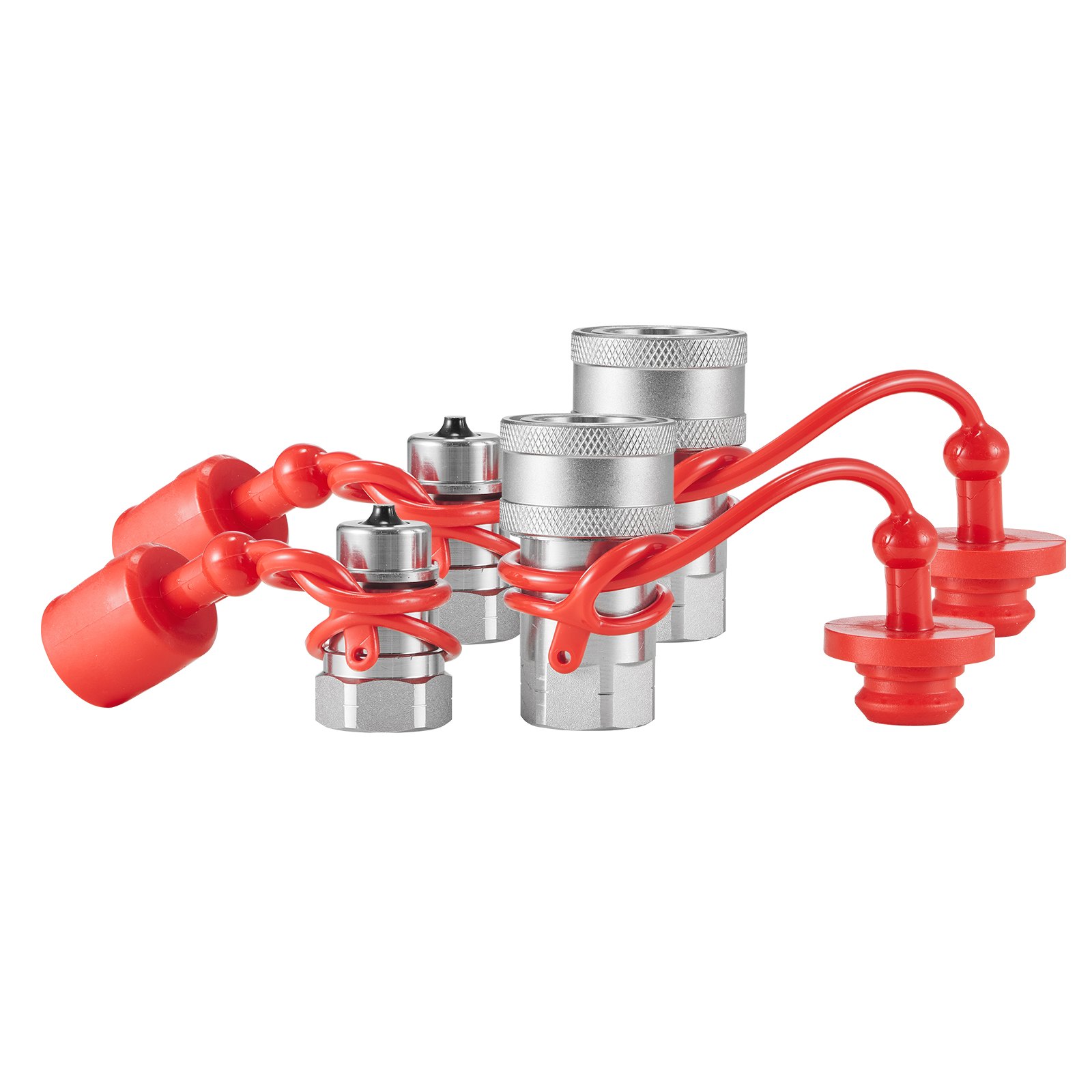

VEVOR 1/2 inch conical hydraulic couplings, 1/2 inch NPT hydraulic quick couplings for compact loaders with 4 dust caps (ISO5675)
