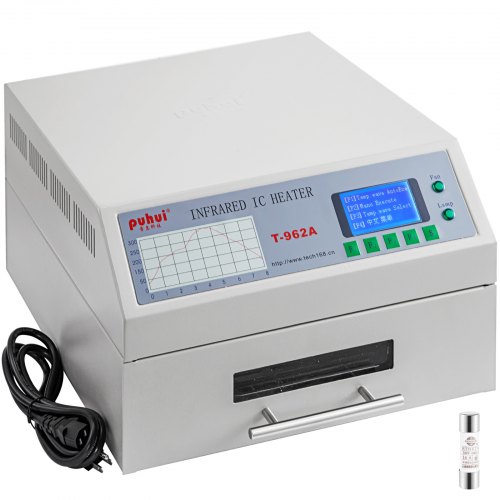

Reflow Oven Reflow Lutownica, T962A SMD BGA Podgrzewacz IC na podczerwień 300x320MM

Recenzje klientów dla Reflow Oven Reflow Lutownica, T962A SMD BGA Podgrzewacz IC na podczerwień 300x320MM

Opinie klientów

Oceny według funkcji

  • 4.7
  • 4.8
  • 4.8
  • 4.9
  • Zobacz więcej Zobacz mniej
5 Recenzje
Wyczyść filtry
Modny_soft Modny_soft
Alien
High quality for a very attractive price, the seller responds to questions very quickly, I am very satisfied and will buy from Vevor again soon. Thank you
sandandstars sandandstars
Good once set up, but needs quite a bit of tweeking
The thing with lead-free solder is that it doesn't flow well below about 240C, but components can get damaged above about 255-260C (or, in some cases, 245C), and an oven only has a short time to get the temperature right. With this type of oven (basically, a grill), it's difficult to do that. Alternatives are a hotplate (requires a lot of skill/practice to get consistent results) or a convection/conveyer oven (if you have several thousands to spare or a company budget). This oven comes with several preset temperature profiles, plus two you can set up yourself. I found the presets for lead-free got too hot, so spent quite a while setting up a good profile (thermocouples on an empty PCB plus trial and error). It's tricky, because the board temperature depends on things like board size, number and size of components, room temperature and, to some extent, randomness. I have not flashed the firmware or any other major modifications - that may help, and there are lots of YouTube videos about it. A few tips: 1) open it up and remove the paint between the earth wire and the chassis (or at the very least, use it with an RCCB). 2) while it's open, change the masking tape for Kapton tape, including under the front of the insulation (it's easy to do). 3) connect a cheap aluminium foil pipe between the fan output and an open window. 4) to set a user profile, go to the profile, press for DEtails and then press (S). You tell it what temperature to be at for every 10 seconds. It seems to interpolate for the intervening times. Press (S) again to save. 5) raise the PCB above the metal shelf slightly so the shelf doesn't cool the board. Overall, provided you are willing to mess around with it, and provided you are not trying to use it professionally or with extra-sensitive components, then you can get it to work pretty well and it's good value for money.
Robert Newbury Robert Newbury
T962 Reflow oven review
This is the most bazaar thing I have come across. The T962 reflow oven is excellent, it's well made but the design is lacking and it won't work out of the box. However if you make the improvements suggested at https://github.com/UnifiedEngineering/T-962-improvements then it really does belome a good machine. I just don't understand why the manufacturer doesn't make these changes?
chris gulick chris gulick
Great reflow oven. Built up a new project came out great.
This oven will use 27.5 AMPS at 120V. Make sure you got a 50Amp breaker. Used a meter to measure power and current.
Teleplan Teleplan
Some Difficulties at First
Although we had difficulties in setting this up to make it right for our use, we now have no complaints.
